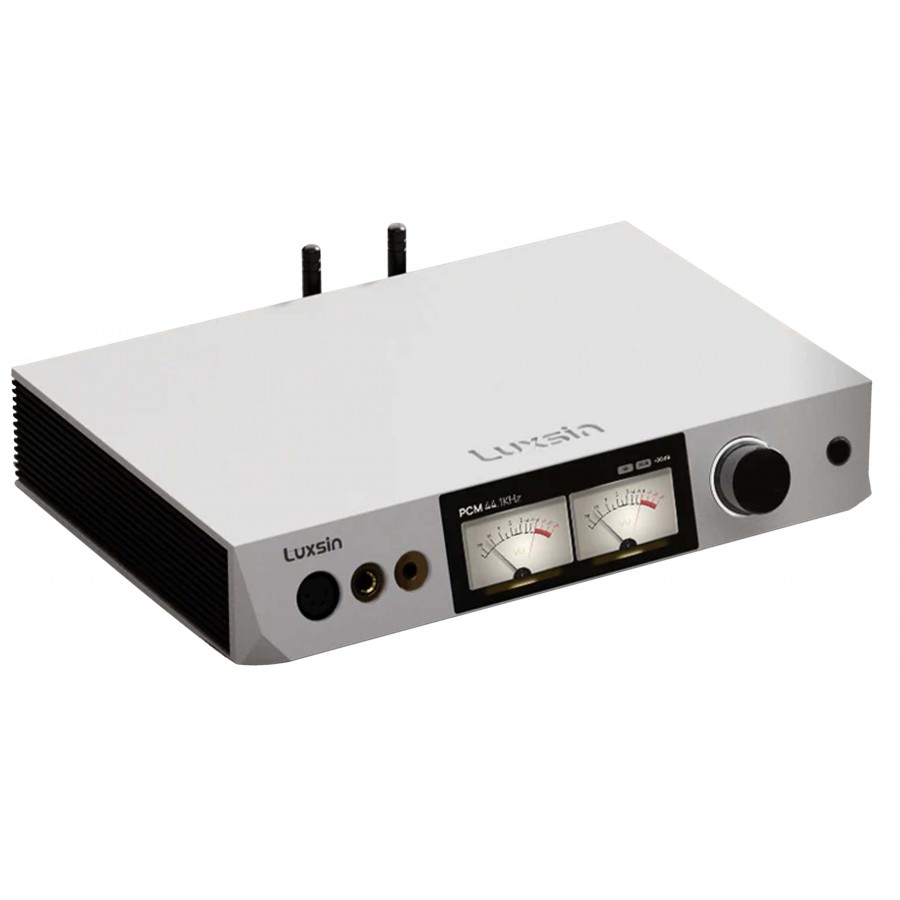

Dodatne specifikacije za LUXSIN X9 DAC POJAČALO ZA SLUŠALICE
| Specifications | |
|---|---|
| Product type | DAC / Headphone amplifier Preamplifier |
| DAC chip | AKM AK4191+AK4499EX |
| USB interface | XMOS XU316 |
| DSP chip | AK7739 |
| OPA | OPA1612 |
| Amplification chip | TPA6120A2 |
| Bluetooth chip | QCC5125 |

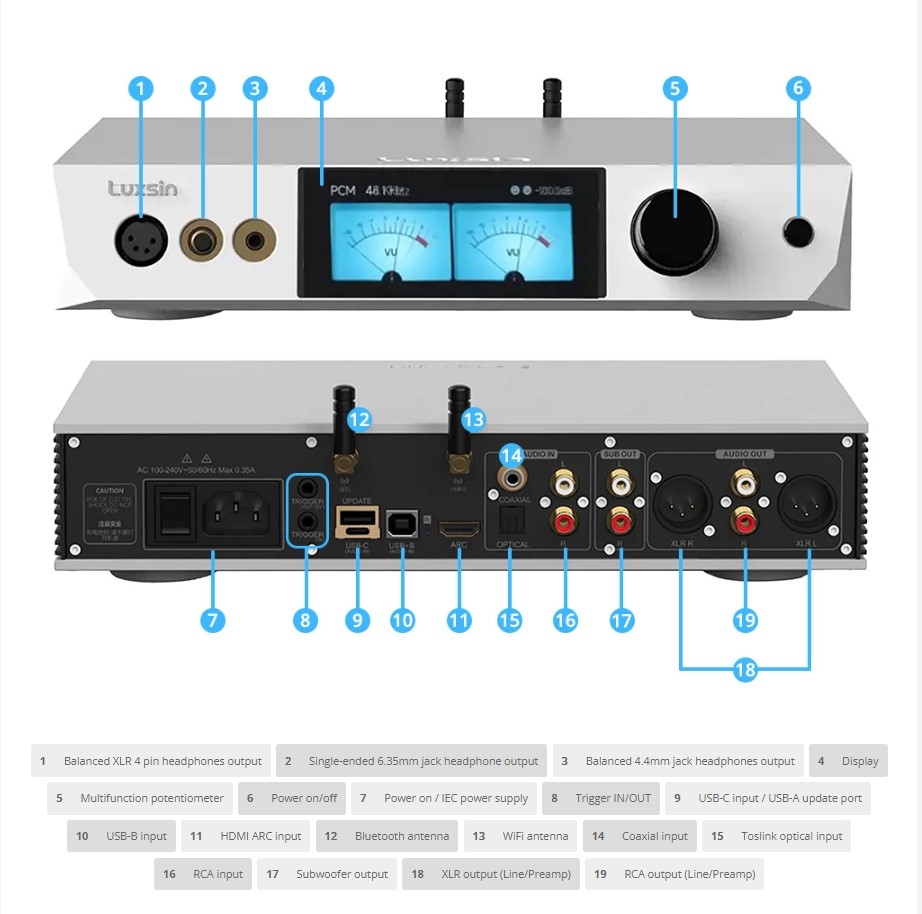

| Inputs | 1x USB-C 1x USB-B 1x HDMI ARC 1x Toslink optical 1x Coaxial 1x Stereo RCA |
| Outputs | 1x Single-ended 6.35mm jack headphone output 1x Balanced 4.4mm jack headphone output 1x Balanced XLR 4-pin headphone output 1x RCA output (line/preamp) 1x XLR output (line/preamp) 1x Subwoofer output (RCA) |
| Supported sample rates | USB: PCM up to 32bit 768kHz, DSD up to DSD512 Toslink optical / Coaxial: PCM up to 24bit 192kHz, DSD up to DoP64 HDMI ARC: PCM 24bit 192kHz |
| Supported Bluetooth codecs | SBC, AAC |
| RCA input gain | Max. +10dB |
| Analog output interface | XLR + RCA or RCA + Subwoofer output |
| Touch screen | 4" 1080P color |
| OS compatibitliy | USB : Windows (10, 11), Android, iOS |
| WiFi | |
| Luxsin App control application | |
| XLR output specifications | |
|---|---|
| Output level | 4.2Vrms @ 0dBFS |
| Frequency response | 20Hz~20KHz (±0.25dB) |
| Dynamic range | > 128dB |
| SNR | > 128dB |
| THD+N | < 0.000096% (-120.3dB) @ Unweighted |
| Crosstalk | > -117dB |
| RCA output specifications | |
|---|---|
| Output level | 2.1Vrms @ 0dBFS |
| Frequency response | 20Hz~20KHz (±0.25dB) |
| Dynamic range | >125dB |
| SNR | >125dB |
| THD+N | <0.00010% (-119dB) @ Unweighted |
| Crosstalk | >-114dB |
| Headphone outputs specification | |
|---|---|
| Output level | 4-15Vrms @ 0dBFS |
| Frequency response | 20Hz~20KHz (±0.25dB) |
| Dynamic range | > 128dB |
| SNR | > 128dB |
| THD+N | < 0.00016% (-116dB) @ Unweighted |
| GEnEral | |
|---|---|
| Power supply | AC 100-240W 50/60Hz |
| Dimensions | 300 x 206 x 65mm |
| Weight | 3.72kg |
| Color | Silver |
| Package | 1x Luxsin X9 1x Remote control 1x Power supply cable |
