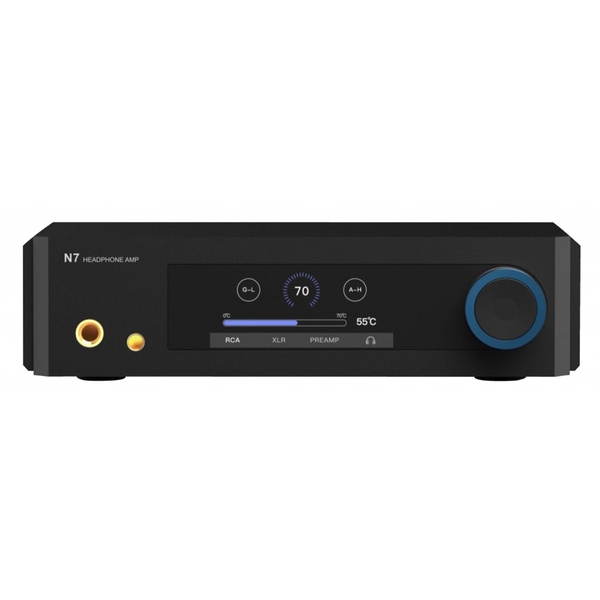

AUNE N7 BALANSIRANO POJAČALO PRETPOJAČALO ZA SLUŠALICE
AUD2314_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Auneov N7 je snažno, diskretno, potpuno balansirano pojačalo-predpojačalo klase A za slušalice. Temelji se na kombinaciji JFET tranzistora za pojačanje slušalica, neovisnoj funkciji predpojačala klase A i R2R kontroli glasnoće za optimalnu obradu audio signala. Korištenje JFET tranzistora pruža topao, gladak zvuk.
Dodatne specifikacije za AUNE N7 BALANSIRANO POJAČALO PRETPOJAČALO ZA SLUŠALICE
| Specifications | |
|---|---|
| Product type | Headphone amplifier Preamplifier |

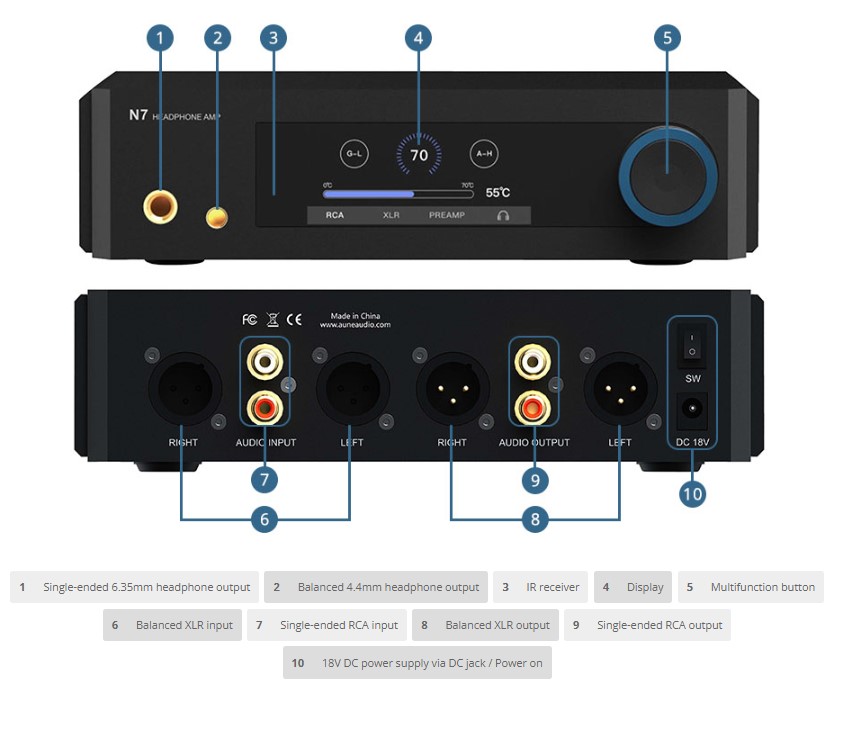

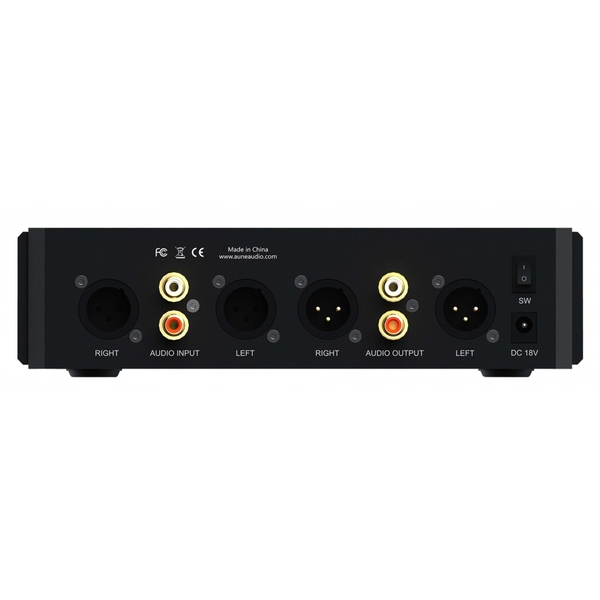

| Inputs | 1x Single-ended RCA input 1x Balanced XLR input |
| Outputs | 1x 6.35mm single-ended headphone output 1x 4.4mm balanced headphone output 1x Single-ended RCA line output 1x Balanced XLR line output |
| Input/output impedance | |
|---|---|
| RCA input impedance | 10kΩ |
| RCA output impedance | 200Ω |
| XLR input impedance | 22kΩ |
| XLR output impedance | 100Ω |
| Headphone outputs: 6.35mm jack, 4.4mm balanced jack | 1Ω |
| 6.35mm headphone output measures | |
|---|---|
| Frequency response (20Hz-80kHz) | ±0.05dB |
| THD+N | < 0.0004% @ 1kHz |
| SNR | > 105dB @ 600Ω |
| Crosstalk | < -100db @ 1khz 600Ω |
| 4.4mm headphone output measures | |
|---|---|
| Frequency response (20Hz-80kHz) | ±0.05dB |
| THD+N | < 0.0004% @ 1kHz |
| SNR | > 105dB @ 600Ω |
| Crosstalk | < -100db @ 1khz 600Ω |
| Gain-dependent output power | |
|---|---|
| 6.35mm headphone output (low gain) | 570mW @ 32Ω 190mW @ 100Ω 130mW @ 150Ω 79mW @ 250Ω 66mW @ 300Ω 42mW @ 470Ω 33mW @ 600Ω |
| Balanced 4.4mm headphone output (low gain) | 2150mW @ 32Ω 720mW @ 100Ω 500mW @ 150Ω 316mW @ 250Ω 270mW @ 300Ω 172mW @ 470Ω 135mW @ 600Ω |
| 6.35mm headphone output (high gain) | 1900mW @ 32Ω 616mW @ 100Ω 416mW @ 150Ω 252mW @ 250Ω 213mW @ 300Ω 136mW @ 470Ω 106mW @ 600Ω |
| Balanced 4.4mm headphone output (high gain) | 6570mW @ 32Ω 2190mW @ 100Ω 1500mW @ 150Ω 900mW @ 250Ω 750mW @ 300Ω 480mW @ 470Ω 370mW @ 600Ω |
| General | |
|---|---|
| Dimensions | 208 x 160 x 83mm |
| Color | Black |

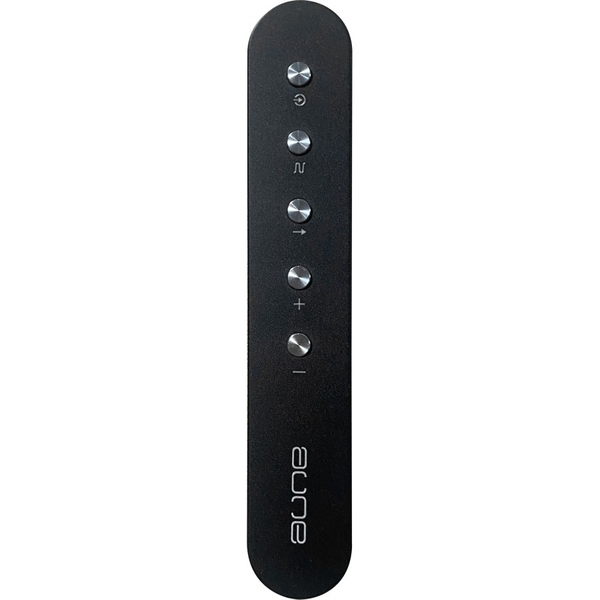

| Package | 1x Aune N7 preamplifier headphone amplifier 1x 6.35mm jack to 3.5mm jack adapter 1x AC adapter and power cord 1x Remote control |
