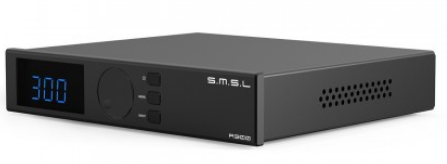

SMSL A300 CLASS D AMPLIFIER 2X MA5332MS USB BLUETOOTH 5.0 SUBWOOFER 2X160W 4 OHM
AUD1356_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
SMSL offers with the A300 a compact but powerful and efficient Class D amplifier, based on a pair of Infineon MA5332MS amplifier chips.
Dodatne specifikacije za SMSL A300 CLASS D AMPLIFIER 2X MA5332MS USB BLUETOOTH 5.0 SUBWOOFER 2X160W 4 OHM
| Input |
|
| Output |
|
| Color |
|
| Channel |
|
| Class |
|
| Amplifier chip |
|
| Power (W) |
|
Connection procedures for BTL Mode
1. Turn off both A300 with the power switch on the back.
2. Connect the audio signal cable from DAC etc. to the R-ch / L-ch of IN1 of the first A300 (master side) respectively.
3. Then connect the output of BTL-R to the L-ch (upper side) of IN1 of another A300 (slave side).
4. Turn on the power switch of the two A300s.
5. From the MENU, set both units to the bridge mode of br1.
6. Set the input selection to IN1 for both units.
This complets the settings.
Since the volume of the A300 on the slave side is already controlled by the master side, set the volume to the maximum (60).
Specifikacija za SMSL A300 CLASS D AMPLIFIER 2X MA5332MS USB BLUETOOTH 5.0 SUBWOOFER 2X160W 4 OHM
OPĆENITO |
|---|
