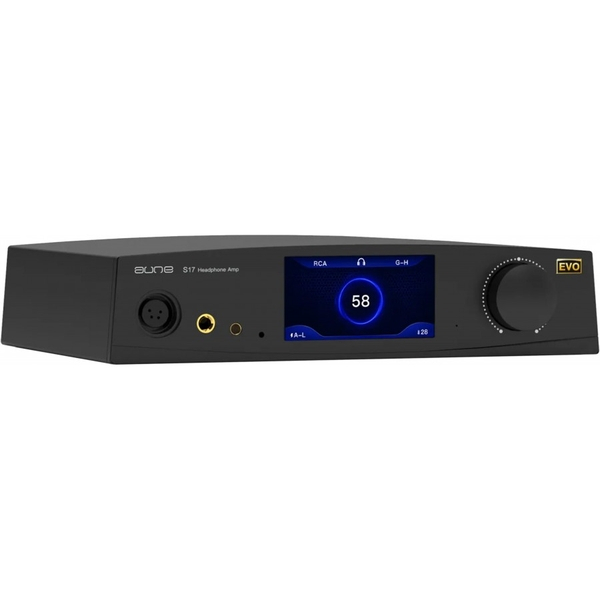

AUNE S17 PRO EVO POJAČALO ZA SLUŠALICE / PRETPOJAČALO

Inputs: 1x Single-ended stereo RCA, 1x Balanced stereo XLR

outputs: 1x Single-ended jack 6.35mm headphone output
1x Balanced jack 4.4mm headphone output
1x Balanced XLR 4-pin headphone output
1x Single-ended RCA line output
1x Balanced XLR line output

RCA input impedance: 10kΩ
RCA output impedance: 200Ω
XLR input impedance: 10kΩ
XLR output impedance: 100Ω
Headphone output impedance: 1Ω

Single-ended Jack 6.35mm headphone output measurements
Frequency response: 20Hz~80kHz (±0.05dB)
THD+N: < 0.0003% @ 1kHz
SNR: > 115dB @ 600Ω
Crosstalk: -105dB @ 1kHz, 600Ω

Balanced XLR headphone output measurements
Frequency response: 20Hz~80kHz (±0.05dB)
THD+N: < 0.00016% @1kHz
SNR: > 116dB @ 600Ω
Crosstalk: < -110db @ 1khz, 600Ω

Output power vs. gain
Jack 6.35mm headphone output (Low gain): 738mW @ 32Ω, 266mW @ 100Ω, 177mW @ 150Ω, 133mW @ 200Ω, 106mW @ 250Ω, 88mW @ 300Ω, 56mW @ 470Ω, 44mW @ 600Ω
Balanced headphone output (Low gain): 2880mW @ 32Ω, 1764mW @ 55Ω, 765mW @ 90Ω, 1000mW @ 100Ω, 694mW @ 150Ω, 520mW @ 200Ω, 416mW @ 250Ω, 347mW @ 300Ω, 221mW @ 470Ω, 173mW @ 600Ω
Jack 6.35mm headphone output (High gain): 2050mW @ 32Ω, 688mW @ 100Ω, 464mW @ 150Ω, 348mW @ 200Ω, 282mW @ 250Ω, 235mW @ 300Ω, 150mW @ 470Ω, 117mW @ 600Ω
Balanced headphone output (High gain): 7500mW @ 32Ω, 4654mW @ 55Ω, 2970mW @ 90Ω, 2673mW @ 100Ω, 1837mW @ 150Ω, 1378mW @ 200Ω, 1102mW @ 250Ω, 918mW @ 300Ω, 586mW @ 470Ω, 459mW @ 600Ω

Dimensions: 288 x 211 x 63mm
Package: 1x Aune S17 Pro EVO
1x Remote control
1x Power cable
1x Jack 6.35mm to Jack 3.5mm adapter
