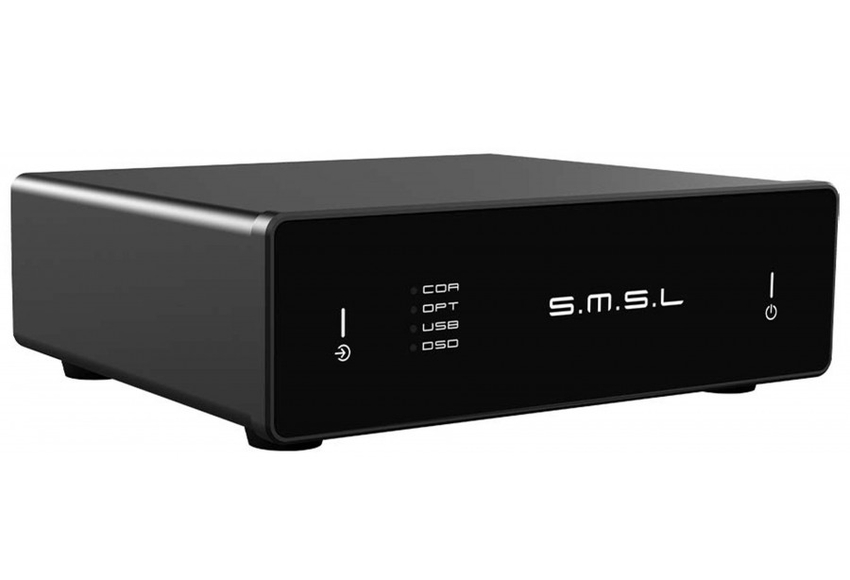

SMSL D1 DAC
AUD2295_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
SMSL D1 je budget DAC temeljen na visokokvalitetnim komponentama. Digitalno-analogna pretvorba se izvodi putem USB XMOS XU-316 sučelja u kombinaciji s Rhom BD34352EKV čipom, što mu omogućuje postizanje SNR-a od 126dB uz podršku za streamove visoke rezolucije do PCM 32bit 768kHz i DSD512.
Dodatne specifikacije za SMSL D1 DAC
| Specifications | |
|---|---|
| Product type | DAC |
| DAC chip | ROHM BD34352EKV |
| USB interface | XMOS XU316 |
| Inputs | 1x USB-C 1x Toslink optical 1x Coaxial |
| Outputs | 1x RCA output |
| Output level | 2Vrms |
| THD+N | 0.00038% (-108dB) |
| Dynamic range | 119dB |
| SNR | 119dB |
| Supported sample rates | USB: PCM up to 32bit 768kHz, DSD up to DSD512 Toslink optical and coaxial: PCM up to 24bit 192kHz |
| USB transmission | Asynchronous |
| USB compatibility | Windows 7/8/8.1/10/11 Mac OS Linux |
| General | |
|---|---|
| Alimentation | 5V 1A via USB-C |
| Power consumption | < 5W Standby: < 0.1W |
| Dimensions | 101 x 33 x 90.1mm |
| Weight | 201.1g |
| Color | Black |
| Package | 1x DAC SMSL D1 |
Specifikacija za SMSL D1 DAC
OPĆENITO |
|---|
