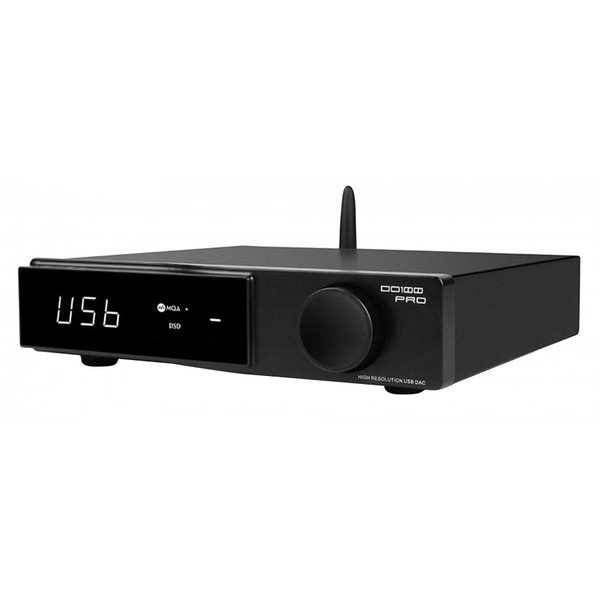

SMSL DO100 PRO BALANCED DAC
Cijena dostave 5,00 €
The SMSL DO100 PRO balanced DAC is an evolution of the DO100 offered by the brand. The DO100 PRO benefits from numerous improvements. It features two ES9039Q2M DAC chips and a third-generation XU316 USB XMOS interface, enabling it to support high-resolution streams up to PCM 32bit 768kHz, DSD512 and MQA/MQA-CD.
Dodatne specifikacije za SMSL DO100 PRO BALANCED DAC
Product type DAC. DAC chip 2x ES9039Q2M. USB interface XMOS XU316. AOP 6x OPA1612. Inputs 1x USB-C input, 1x Toslink optical input, 1x Coaxial SPDIF input, 1x HDMI ARC, Bluetooth. Outputs 1x RCA Stereo, 1x XLR balanced stereo. Supported sampling rates USB: PCM 32bit 768kHz, DSD DoP256, DSD512 and MQAx8/MQA-CD, Toslink optical and SPDIF coaxial: 24bit 192kHz, DSD DoP64 and MQAx8/MQA-CD. Supported Bluetooth codecs SBC, AAC, aptX, aptX HD et LDAC. Output level RCA : 2.5Vrms, XLR : 5Vrms. THD+N 0.00005% (-124.5dB non-weighted). Dynamic range XLR : 131dB RCA : 127dB. SNR XLR : 131dB RCA : 127dB. Output impedance 100 ohms. USB Transmission Asynchronous. USB compatibility Windows 7/8/8.1/10/11 (with driver), MAC OSX 10.6 et + / Linux (without driver). Dimensions 189x45x186mm.
Specifikacija za SMSL DO100 PRO BALANCED DAC
