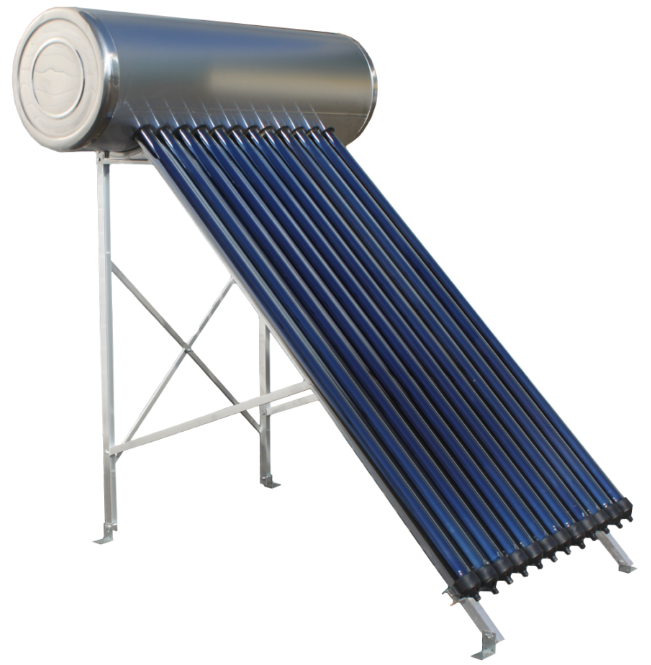

Dodatne specifikacije za TERMOSIFONSKI CIJEVNI SET, 150L SPREMNIK, ZA RAVNI KROV
Heat pipe vacuum tubes
- Vacuum tubes with 3 absorption layers (Cu/SS-ALN(H)/SS-ALN(L)/ALN) which permits an absorption of 96% and a stagnation temperature of 280°C
- Borosilicate glass, 1.8 mm thick, resisting up to 30 mm diameter hail.
- Tube vacuum of 2.0×10-3 Pa
- 22 mm heat pipe condenser
Solar water tank
- Made of 1.5 mm AISI 316L stainless steel, TIG-Argon welding.
- Pickled and passivized tank, suitable for use even with high calcium water
- Insulated with rigid PU foam, 50 mm thick
- Equipped with replaceable magnesium anode and 4 bar safety valve
- Possibility of installing a back-up electrical heater.
- Hot / cold water connections – 1/2″ M
- Electrical kit and sensor pocket connections – 1/2″ F
Mounting frame
- Extruded aluminum profiles, 2 mm thick
