SONOFF SENZOR SI7021
SH101_12,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 12 mjeseci NEUTRINO

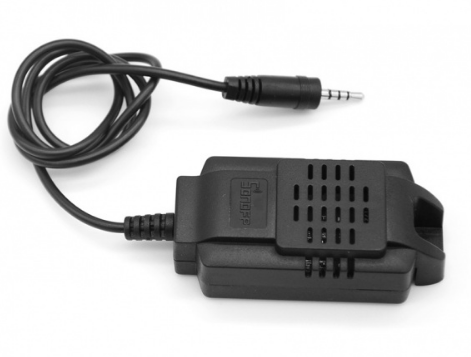

Sonoff Si7021 Temperature and Humidity Sensor is a digital temperature and humidity sensor with a calibrated digital signal output.
Dodatne specifikacije za SONOFF SENZOR SI7021
Rated Parameters
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Voltage input | VCC | 2.2 | 3.3 | 3.6 | V |
| Operating temp. & Measuring range | Ta | -40 | - | +85 | ℃ |
| Storage temp. | Ta | -65 | - | +150 | ℃ |
Performance parameters
| Parameter | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Humidity | |||||
| Operating range | 0 | — | 100 | %RH | |
| Accuracy | 0-80 | — | ±2 | ±3 | %RH |
| 80-100 | See Figure 1 | ||||
| Temperture drift | — | 0.05 | — | %RH/℃ | |
| Stability | — | ≤0.25 | — | %RH/yr | |
| Temperature | |||||
| Operating range | -40 | — | +85 | ℃ | |
| Accuracy | -10≤Ta≤85 | — | ±0.3 | ±0.4 | ℃ |
| -40≤Ta≤125 | See Figure 2 | ||||
| Stability | — | ≤0.01 | — | ℃/yr |
|
