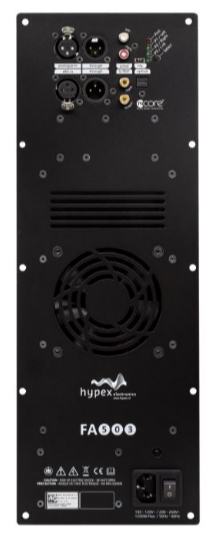

HYPEX DSP ACTIVE CROSSOVER, SKRETNICA SA POJAČALOM FA503 2x500W + 100W
AUD970_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The FA503 2x500 +100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.
Dodatne specifikacije za HYPEX DSP ACTIVE CROSSOVER, SKRETNICA SA POJAČALOM FA503 2x500W + 100W
Specifications
Article numberFA503
Rated power output
2 x 500 watts + 1 x 100 watts at 4 ohms
2 x 270 watts + 1 x 100 watts at 8 ohms
2 x 400 watts at 2 ohms + 1 x 100 watts at 4 ohms
Rated power output bridged
1 x 1000 watts at 4 ohms
1 x 1200 watts at 8 ohms
Minimum load2 ohms (4 ohms for tweeter channel)
Signal-to-noise ratio (SNR)124 dB
Distortion0.0018 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged-
Amplifier classificationClass D
Circuit topologyNcore®
Efficiency92 % at full power
Frequency response10 - 50,000 Hz
Input impedance
54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM)
Input sensitivity2.35 Vrms for rated power output
Auto turn-on sensitivity-
DSPcheck
DACcheck
Maximum sampling rate
192 kHz
96 kHz (optical)
Speaker output channels3
Analog in/out1/1
S/PDIF in/out2/1
AES/EBU in/out1/1
Coaxial in/out1/1
RCA in/out1/ -
XLR in/out2/2
Jack in/out- / -
USB connectioncheck configure port only
Network connection-
Bluetooth-
Subwoofer pre-out-
Auto on/offcheck
Remote controlcheck (sold separately)
App control-
Equalizer (EQ) adjustmentcheck
Equalizer (EQ) profilescheck
Phase controlcheck
Crossover frequency adjustmentcheck
Presetscheck
Control softwareHypex Filter Design
Windows/Mac compatiblecheck/ -
Power requirements200-240 VAC ±10%
Power inlet connectorIEC C14
Standby power consumption-
Current limit27 A
Under/over voltage protectioncheck
Dimensions (H x W x D)420 x 150 x 90 mm
Cutout dimensions396 x 126 mm
Specifikacija za HYPEX DSP ACTIVE CROSSOVER, SKRETNICA SA POJAČALOM FA503 2x500W + 100W
