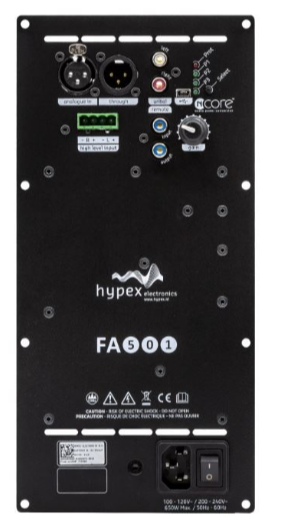

HYPEX DSP ACTIVE CROSSOVER, SKRETNICA SA POJAČALOM SNAGE FA501 1x500W
AUD968_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
The FA501 500 Watt FusionAmp is a DSP controlled plate amplifier. It can be the basis of a powerful active subwoofer or an active one-way monitor.
Dodatne specifikacije za HYPEX DSP ACTIVE CROSSOVER, SKRETNICA SA POJAČALOM SNAGE FA501 1x500W
Specifications
Article numberFA501
Rated power output
1 x 500 watts at 4 ohms
1 x 270 watts at 8 ohms
1 x 400 watts at 2 ohms
Rated power output bridged-
Minimum load2 ohms
Signal-to-noise ratio (SNR)124 dB
Distortion0.0020 % THD+N (10-20,000 Hz at 0.5 x rated power output)
Distortion bridged-
Amplifier classificationClass D
Circuit topologyNcore®
Efficiency92 % at full power
Frequency response10 - 50,000 Hz
Input impedance
54k ohms (unbalanced RCA)
44k ohms (balanced XLR DM)
2.2m ohms (balanced XLR CM)
Input sensitivity2.35 Vrms for rated power output
Auto turn-on sensitivity-
DSPcheck
DACcheck
Maximum sampling rate
192 kHz
96 kHz (optical)
Speaker output channels1
Analog in/out1/1
S/PDIF in/out- / -
AES/EBU in/out- / -
Coaxial in/out- / -
RCA in/out1/ -
XLR in/out1/1
Jack in/out- / -
USB connectioncheck configure port only
Network connection-
Bluetooth-
Subwoofer pre-out-
Auto on/offcheck
Remote controlcheck Sold separately
App control-
Equalizer (EQ) adjustmentcheck
Equalizer (EQ) profilescheck
Phase controlcheck
Crossover frequency adjustmentcheck
Presetscheck
Control softwareHypex Filter Design
Windows/Mac compatiblecheck/ -
Power requirements200-240 VAC ±10%
Power inlet connectorIEC C14
Standby power consumption-
Current limit27 A
Under/over voltage protectioncheck
Dimensions (H x W x D)280 x 135 x 55 mm
Cutout dimensions256 x 111 mm
