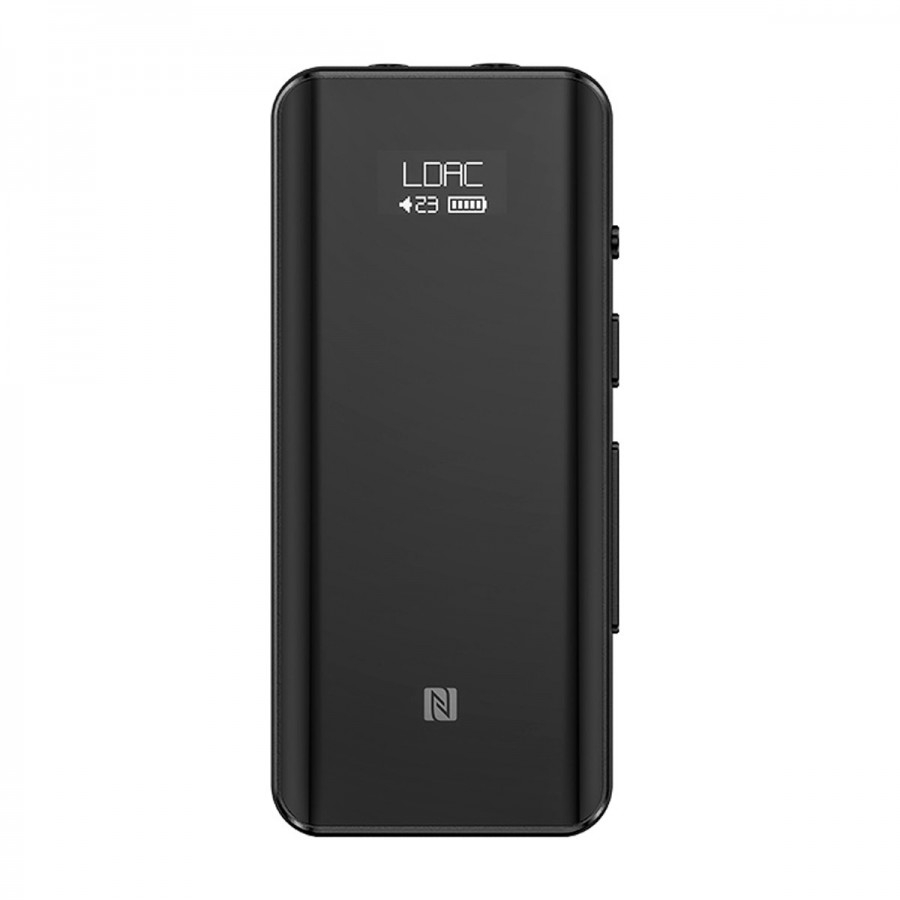

FIIO BTR5 2021 BALANCED HEADPHONE AMPLIFIER DAC BLUETOOTH 5.0 RECEIVER 2X ES9219P CSR8675 XMOS 32BIT 384KHZ DSD256 MQA
AUD926_1,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava
Jamstvo 24 mjeseci
The FiiO BTR5 2021 is a compact, portable headphone amplifier, offering excellent design quality and versatility for enhanced listening at home or on the go.
Dodatne specifikacije za FIIO BTR5 2021 BALANCED HEADPHONE AMPLIFIER DAC BLUETOOTH 5.0 RECEIVER 2X ES9219P CSR8675 XMOS 32BIT 384KHZ DSD256 MQA
| SPECIFICATIONS | |
|---|---|
| Product type | Portable amplifier |
| Connectivity / Connectics | Bluetooth USB-C Jack 3.5mm Balanced Jack 2.5mm |
| Bluetooth version | 5.0 |
| Supported Bluetooth codecs | SBC, AAC, aptX, aptX HD, aptX LL, LDAC |
| Bluetooth chip | CSR8675 |
| DAC chip | 2x ES9219P |
| USB Interface | XMOS XUF208 |
| Transmission distance | 10m |
| Supported sampling rates | PCM up to 32bit 384kHz DSD up to DSD256 native MQA 16x (Renderer) |
| Gain setting | High (H) Low (L) |
| Volume setting | Bluetooth : 32 step USB DAC : 60 step |
| Output power | Jack 3.5mm : 2x80mW @ 32Ω Jack 3.5mm : 2x90mW @ 16Ω Balanced Jack 2.5mm : 2x240mW @ 32Ω Balanced Jack 2.5mm : 2x240mW @ 16Ω |
| SNR | Jack 3.5mm : -118dB (32Ω, A-Weighted) Balanced Jack 2.5mm : -122dB (32Ω, A-Weighted) |
| Noise floor | Jack 3.5mm : ≤ 2uV Balanced Jack 2.5mm : ≤ 2.2uV (A-Weighted) |
| THD+N | Jack 3.5mm : ≤ 0.003% (LDAC, 1kHz, A-Weighted) Balanced Jack 2.5mm : ≤ 0.002% (LDAC, 1kHz, 32Ω, A-Weighted) |
| Output impedance | Jack 3.5mm : ≤ 1Ω (charge 32Ω) Balanced Jack 2.5mm : ≤ 2Ω (32Ω load) |
| Channel separation | Jack 3.5mm : 79dB Balanced Jack 2.5mm : 117dB (1kHz/32Ω) |
| Frequency response | 20Hz - 20kHz (aptX) 20Hz - 40kHz (LDAC) |
| Amplitude | Jack 3.5mm : 1.6V (32Ω, THD+N < 1%) Jack 3.5mm : 1.8V (no load) Balanced Jack 2.5mm : 2.8V (32Ω, THD+N < 1%) Balanced Jack 2.5mm : 3.6V (no load) |
| Crosstalk | Jack 3.5mm : ≥ 79dB (32Ω, 1kHz) Jack 3.5mm : ≥ 95dB (no load, 1kHz) Balanced Jack 2.5mm : ≥ 118dB (32Ω, 1kHz) Balanced Jack 2.5mm : ≥ 119dB (no load, 1kHz) |
| CTIA Control | yes |
| NFC | yes |
| Battery | 550mAh |
| Autonomy | Jack 3.5mm : 9h Balanced Jack 2.5mm : 7h (AAC) |
| Charging time | 1.5h |
| Recommended | Jack 3.5mm output : 16~100Ω Balanced Jack 2.5mm output : 16~150Ω |
| Channel balance | ≤ 0.1dB |
| GENERAL | |
|---|---|
| Charge voltage/current | 5VDC 500mA |
| Housing material | Aluminium + Glass |
| Color | Black |
| Dimensions | 72 x 32 x 11.1mm |
| Weight | 43.7g |
| Package | 1x FiiO BTR5 1x USB cable 1x Rear clip |
