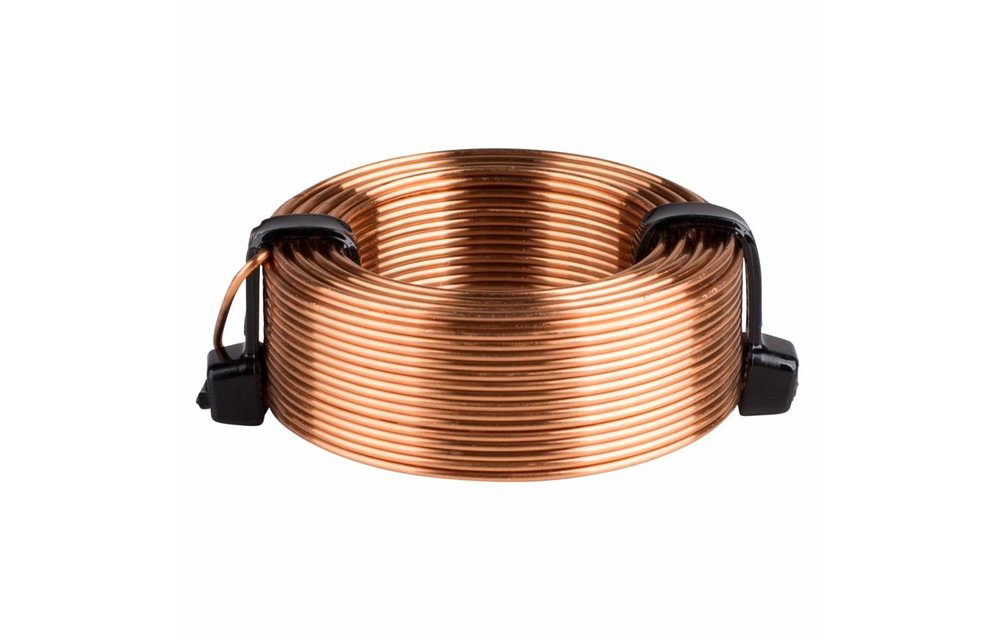

Dayton Audio AC20-60 | 0.60 mH | 0.56 Ω | 5% | 20 AWG | Air Core Inductor Crossover Coil


Dodatne specifikacije za DAYTON AUDIO AC20-60 0.60 MH 0.56 Ω 5% 20 AWG AIR CORE INDUCTOR CROSSOVER COIL

Product description



Highlights


  • Highly refined copper wire for low DCR
  • Perfect layer windings
  • Air core construction
  • 200 watts RMS power handling
  • ±5% tolerance





Product details


Dayton Audio AC20-60 | 0.60 mH | 0.56 Ω | 5% | 20 AWG | Air Core Inductor Crossover Coil



Dayton Audio 20 gauge air core inductors are a great choice and the best value for building high quality crossovers. Features fully annealed refined copper wire, perfect layer windings and air core construction to ensure no hysteresis and saturation distortions.



Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

Specifications


Article numberAC20-60
Inductance0.60 mH
DCR0.56 ohms
Tolerance±5%
Wire diameter20 AWG
Power handling (RMS)200 Watts
Dimensions: Ø * H (mm)39.5 x 13.5 mm
