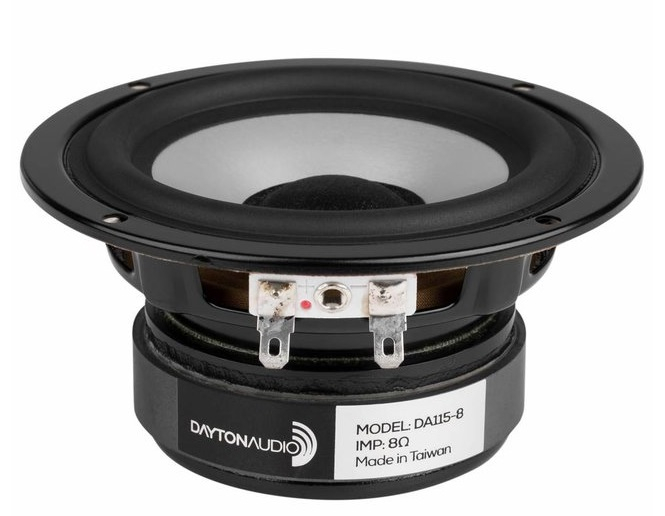

DAYTON AUDIO DA115-8 4'' ALUMINUM CONE WOOFER
AUD911_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion
Dodatne specifikacije za DAYTON AUDIO DA115-8 4'' ALUMINUM CONE WOOFER
Highlights
- Great looking and sounding woofer
- Cosmetic stamped steel frame
- Flat frequency response in passband region
- Impressive output capabilities when used in MTM designs
- Very low distortion
Product details
Dayton Audio DA115-8 4" Aluminum Cone Woofer
The aluminum cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion. When used with a well-designed crossover, an extremely flat frequency response can be achieved that is clean well into the midrange region.
Specifications
Article numberDA115-8
Woofer SeriesSpecialty
Woofer TypeMidwoofer
Nominal Diameter4"
Power Handling (RMS)20 watts
Power Handling (max)40 watts
Impedance (Z)8 ohms
Sensitivity84.9 dB @ 1W/1m
Frequency Response60 - 15,000 Hz
Voice Coil Diameter25 mm
DC Resistance (Re)6.4 ohms
Voice Coil Inductance (Le)0.70 mH
Resonant Frequency (Fs)60 Hz
Mechanical Q (Qms)2.60
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.41
Diaphragm Mass Inc. Airload (Mms)6.6g
Mechanical Compliance of Suspension (Cms)1.1 mm/N
Surface Area of Cone (Sd)53.1 cm²
Volume of Displacement (Vd)0.0133 cm³
BL Product (BL)5.70 Tm
Compliance Equivalent Volume (Vas)4.4 liters
Maximum Linear Excursion (Xmax)2.5 mm
Cone / Diaphragm MaterialAluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter115.6 mm
Overall Depth57.3 mm
Baffle Cutout Diameter93 mm
# Mounting Holes4
Sealed Volume0.04 ft.³
Sealed F3125 Hz
Vented Volume0.13 ft.³
Vented F368 Hz
