MUNDORF ECAP RAW ECAP100-100 100 ΜF 5% 100 V ELECTROLYTIC NON-POLARIZED CAP
AUD901_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

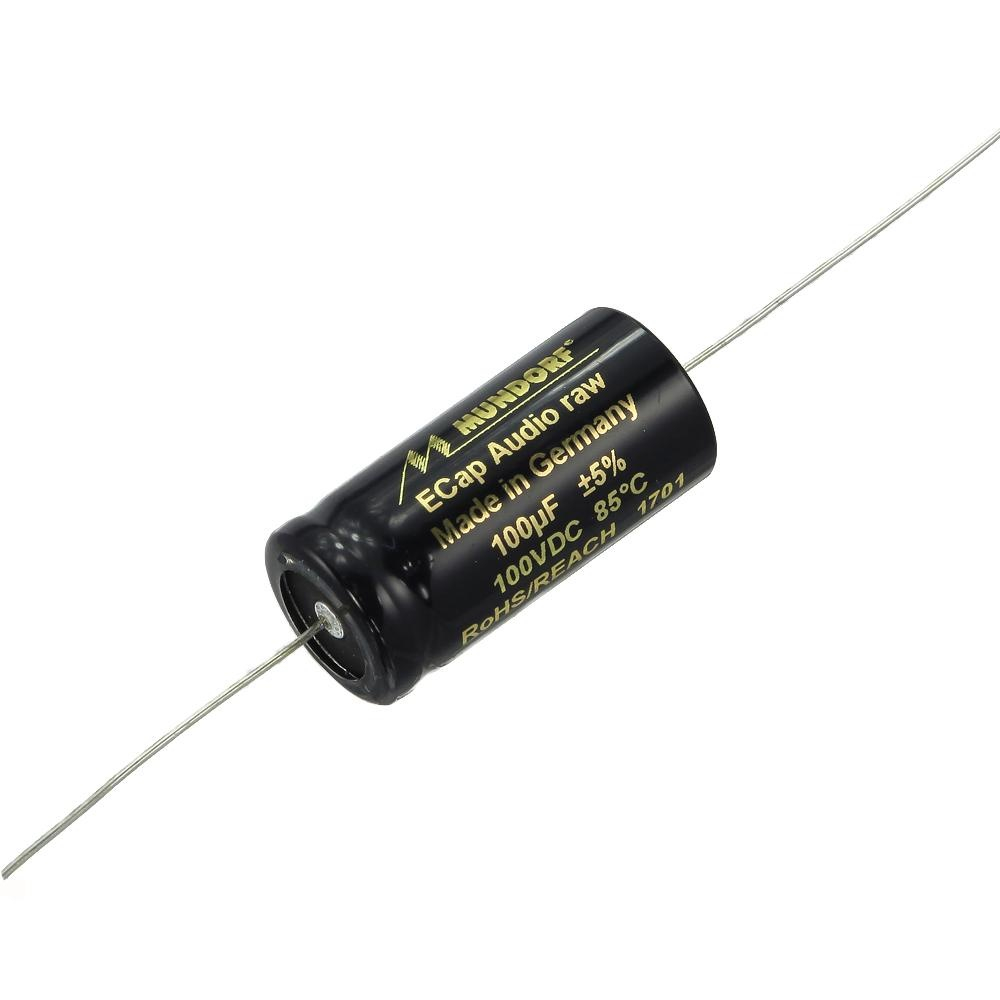

Mundorf ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Electrolytic Non-Polarized Cap
Dodatne specifikacije za MUNDORF ECAP RAW ECAP100-100 100 ΜF 5% 100 V ELECTROLYTIC NON-POLARIZED CAP
Product description
Highlights
- Manufactured in Germany
- Temperature range: -40°C/ -40°F to 85°C/+185°F
- Service life: [UR · R~] 3000 hours at +85°C/+185°F
- Loss angle: tan ∂ = 0.050@1kHz
Product details
Mundorf ECap RAW | ECAP100-100 | 100 µF | 5% | 100 V | Electrolytic Non-Polarized Cap
The bipolar electrolytic capacitors of the ECap AC Audio Coupling & Signal Cap RAW series have foils with surfaces which are roughened by a special etching process, enlarging the surface. As the capacity of capacitors is proportional to their surface, this process provides the smallest and cheapest Mundorf audio capacitors. However, this process also weakens the sound quality comparing to non-etched versions.
Specifications: Value: 100 µF • Rated: 35 / 100 VAC / VDC • Tolerance: ±5% • Dimensions Body: 18 mm Dia. x 39 mm L. • Dimensions Wire: 0.8 mm Dia. x 40 mm L
Specifications
Article number: ECAP100-100
Capacitance (µF): 100 µF
Voltage Rating: 100 V
Tolerance: ±5%
Dimensions: Ø * L (mm)18 x 39
Termination Style: Axial
