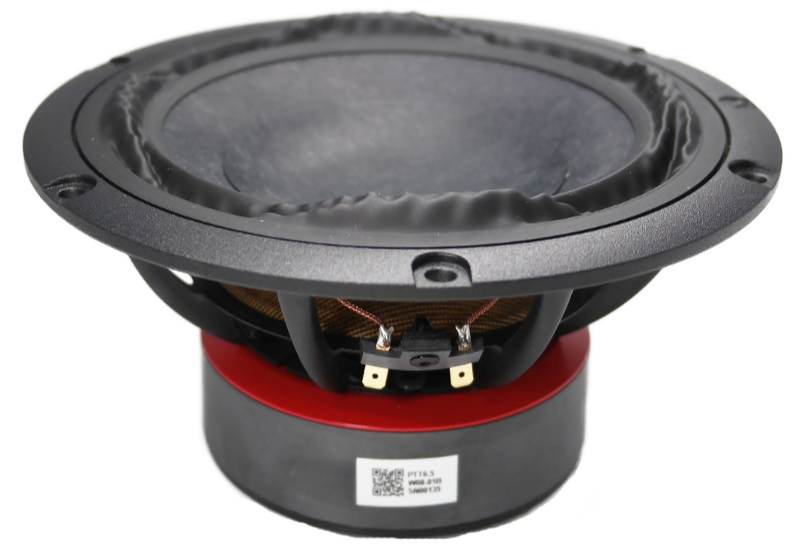

PURIFI PTT6.5X08-NFA-01 6.5” ULTRA LOW DISTORTION LONG STROKE DRIVER 8 OHM

AUD890_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/6366/image_1920?unique=7530d45
Potrebna provjera kod dobavljača
  • Tag jamstvo

452,00 € 452,00 € 452.0 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 475,79 € 475,79 € Na rate

Jednokratno Diners, sve kartice na rate

452,00 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava
Jamstvo 24 mjeseci

The PURIFI PTT6.5X08-NFA-01 a is a refined bass-mid-woofer, incorporating state of the art technology that is based on extended research. The result is a long-stroke woofer with unparalleled performance.

Dodatne specifikacije za PURIFI PTT6.5X08-NFA-01 6.5” ULTRA LOW DISTORTION LONG STROKE DRIVER 8 OHM

  • Specifications

    Article numberPTT6.5X08-NFA-01
    Woofer Series-
    Woofer TypeBass-midwoofer
    Nominal Diameter6.5"
    Power Handling (RMS)250 watts
    Power Handling (max)-
    Continuous Program Power80 watts
    Impedance (Z)8 ohms
    Sensitivity86.9 dB @ 2.83V/1m
    Frequency Response-
    Voice Coil Diameter39 mm
    Magnet Weight-
    DC Resistance (Re)6 ohms
    Voice Coil Inductance (Le)0.53 mH @ 1kHz
    Resonant Frequency (Fs)31 Hz
    Mechanical Q (Qms)6.6
    Electromagnetic Q (Qes)0.32
    Total Q (Qts)0.30
    Diaphragm Mass Inc. Airload (Mms)24.4 g
    Moving Mass Of Diaphragm (Mmd)-
    Mechanical Compliance of Suspension (Cms)1.06 mm/N
    Surface Area of Cone (Sd)132.7 cm²
    Volume of Displacement (Vd)132.7 cm³
    BL Product (BL)9.5
    Compliance Equivalent Volume (Vas)26.4 liter
    Maximum Linear Excursion (Xmax)10 mm
    Driver's Mechanical Losses (Rms)0.72 kg/s
    Cone / Diaphragm MaterialProprietary Fibre Mix
    Surround MaterialNitrile rubber
    Voice Coil Wire MaterialAluminum
    Voice Coil FormerFiberglass
    Dual Voice Coil-
    Basket / Frame MaterialAluminum alloy diecast
    Magnet MaterialFerro-magnetic
    Shielded-
    Overall Outside Diameter176 mm
    Overall Depth90.2 mm
    Baffle Cutout Diameter145 mm
    Bolt Circle Diameter166 mm
    # Mounting Holes6
    Mounting Hole Diameter5.1 mm
    Sealed Volume-
    Sealed F3-
    Vented Volume-
    Vented F3-
