  2. SEAS PRESTIGE U22REX/P-SL - H1659-08 8" WOVEN POLY CONE WOOFER
Gotovina - jednokratno kartice

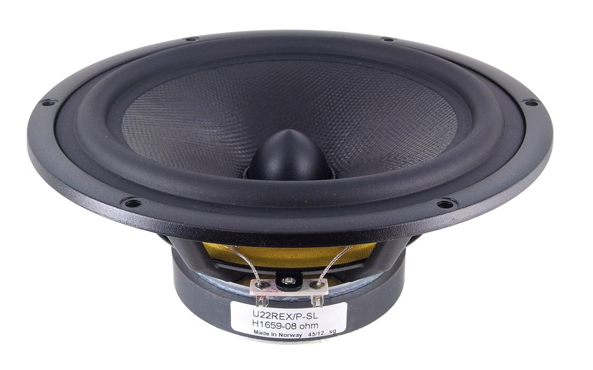

SEAS PRESTIGE U22REX/P-SL - H1659-08 8" WOVEN POLY CONE WOOFER

AUD882_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/6358/image_1920?unique=7530d45
Potrebna provjera kod dobavljača
  • Tag jamstvo

145,86 € 145,86 € 145.86 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 153,54 € 153,54 € Na rate

Jednokratno Diners, sve kartice na rate

145,86 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava
Jamstvo 24 mjeseci

Long term power handling (RMS) is 100 Watts, New Curv cone, a woven polypropylene with excellent internal damping

Dodatne specifikacije za SEAS PRESTIGE U22REX/P-SL - H1659-08 8" WOVEN POLY CONE WOOFER

  • Specifications

    Article numberU22REX/P-SL
    Woofer SeriesPrestige Series
    Woofer TypeMidwoofer
    Nominal Diameter8"
    Power Handling (RMS)100 Watts
    Power Handling (max)250 Watts
    Impedance (Z)8 ohms
    Sensitivity90.5 dB 2.83V/1m
    Frequency Response29 to 4,000 Hz
    Voice Coil Diameter1.53"
    Magnet Weight45.8 oz.
    DC Resistance (Re)6 ohms
    Voice Coil Inductance (Le)0.7 mH
    Resonant Frequency (Fs)29 Hz
    Mechanical Q (Qms)1.77
    Electromagnetic Q (Qes)0.34
    Total Q (Qts)0.29
    Diaphragm Mass Inc. Airload (Mms)19.8g
    Mechanical Compliance of Suspension (Cms)1.7 mm/N
    Compliance Equivalent Volume (Vas)3.63 ft.³
    Maximum Linear Excursion (Xmax)4 mm
    Overall Outside Diameter8.69"
    Overall Depth3.76"
    Baffle Cutout Diameter7.34"
    Bolt Circle Diameter8.25"
    # Mounting Holes6
    Mounting Hole Diameter0.2"
