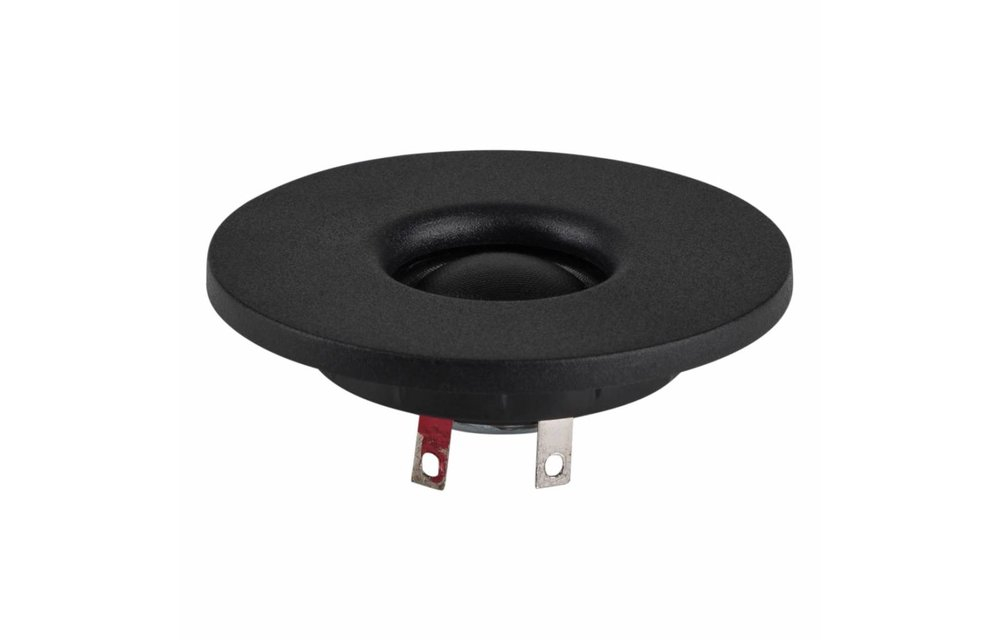

DAYTON AUDIO ND13FA-4 1/2" VISOKOTONAC SOFT DOME NEODYMIUM TWEETER 4 OHM

AUD878_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/6287/image_1920?unique=7530d45
Potrebna provjera kod dobavljača
  • BRAND
  • Tag jamstvo

9,16 € 9,16 € 9.16 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

9,64 € 9,64 € Na rate

Jednokratno Diners, sve kartice na rate

9,16 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

Dayton Audio's tiny ND13FA-4 1/2" soft dome tweeter is perfect for use in compact 2-way systems such as desktop, surround, or portable speaker systems. With smooth response from 4,500 to 20,000 Hz this tweeter is ideal for adding more top end to many full-range drivers.


Dodatne specifikacije za DAYTON AUDIO ND13FA-4 1/2" VISOKOTONAC SOFT DOME NEODYMIUM TWEETER 4 OHM


Highlights


  • Compact faceplate is perfect for minimal center-to-center distances
  • Easy installation, front mount pressfit design
  • Ferrofluid enhances power handling and helps damp resonance
  • Powerful neodymium motor keeps tweeter small with impressive efficiency





Product details


Dayton Audio ND13FA-4 1/2" Soft Dome Neodymium Tweeter 4 Ohm



The versatile ND13FA-4 1/2" soft dome tweeter from Dayton Audio has the sensitivity, smoothness, and power handling for use in a 2-way design with most small woofers. The small faceplate allows minimal center-to-center distances making these a great choice for use in 2-way designs with high crossover points. With 4-ohm impedance, this tweeter is suitable for use in both home and automotive applications. Thanks to the Ferrofluid cooled voice coil, the ND13FA-4 can handle an impressive amount of power and has excellent damping for extremely accurate response.

Specifications

Article numberND13FA-4
Tweeter TypeSoft Dome
Tweeter SeriesND Series
Cone / Dome Diameter1/2"
Power Handling (RMS)20 Watts
Impedance (Z)4 ohms
Sensitivity88.5 dB 2.83V/1m
Frequency Response4,500 to 20,000 Hz
Resonant Frequency (Fs)2832 Hz
DC Resistance (Re)3.07 ohms
Voice Coil Inductance (Le)0.02 mH
Mechanical Q (Qms)0.93
Electromagnetic Q (Qes)8.44
Total Q (Qts)0.84
Overall Outside Diameter1.77"
Cutout Diameter1.16"
Depth0.45"

Specifikacija za DAYTON AUDIO ND13FA-4 1/2" VISOKOTONAC SOFT DOME NEODYMIUM TWEETER 4 OHM
