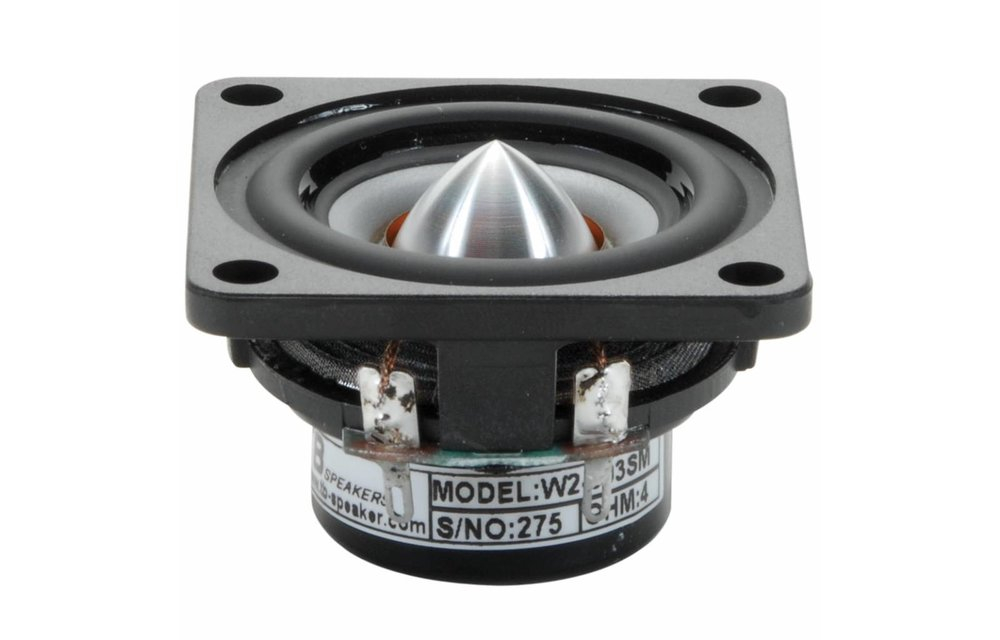

TANG BAND W2-803SM 2" EXTENDED RANGE SPEAKER DRIVER
AUD857_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
A small 2" drive unit useable as a mid-tweeter or extended-range midbass. Features include a silver poly cone, ABS basket, solid aluminum phase plug, shielded neodymium motor, s-shaped surround, and venting under the spider.
Dodatne specifikacije za TANG BAND W2-803SM 2" EXTENDED RANGE SPEAKER DRIVER
Highlights
- Full range design
- ABS basket, magnetically shielded
- Silver PPM cone with R shape TPR surround
- Neodymium magnet design
- Good for car, home theater, multimedia application
- Special aluminum phase plug to provide wider dispersion and heat sink
Specifications
Article numberW2-803SM
Woofer TypeFull-range
Nominal Diameter2"
Power Handling (RMS)8 Watts
Power Handling (max)16 Watts
Impedance (Z)4 ohms
Sensitivity85 dB 1W/1m
Frequency Response160 to 20,000 Hz
Voice Coil Diameter0.75"
DC Resistance (Re)3.6 ohms
Voice Coil Inductance (Le)0.04 mH
Resonant Frequency (Fs)160 Hz
Mechanical Q (Qms)3.56
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.4
Diaphragm Mass Inc. Airload (Mms)0.87g
Mechanical Compliance of Suspension (Cms)1.05 mm/N
Surface Area of Cone (Sd)13 cm²
BL Product (BL)2.69 Tm
Compliance Equivalent Volume (Vas)0.008 ft.³
Maximum Linear Excursion (Xmax)1 mm
Cone / Diaphragm MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialFerrite
ShieldedYes
Overall Outside Diameter2.24"
Overall Depth1.35"
Baffle Cutout Diameter2.04"
# Mounting Holes4
Sealed Volume0.01 ft.³
Sealed F3314 Hz
Vented Volume0.01 ft.³
Vented F3168 Hz
Specifikacija za TANG BAND W2-803SM 2" EXTENDED RANGE SPEAKER DRIVER
