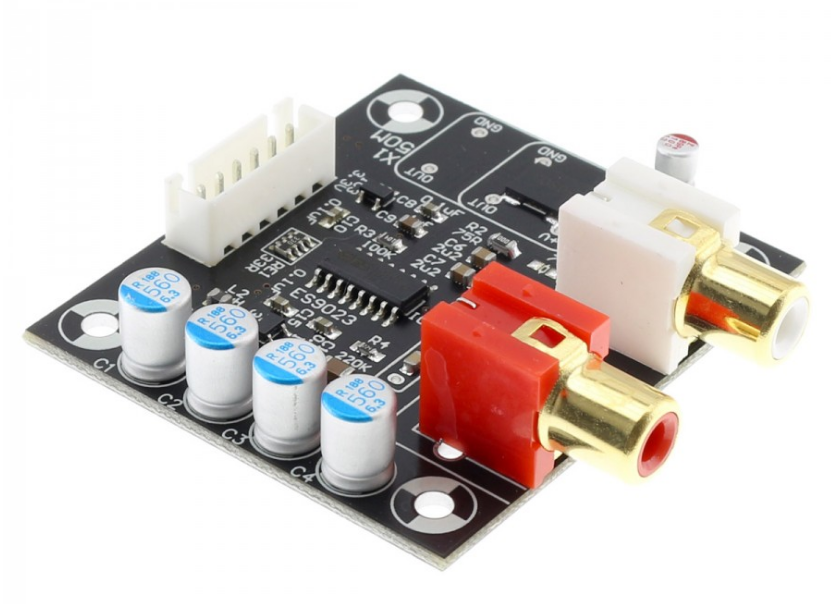

AUDIOPHONICS DAC EXPANSION BOARD ES9023 V2.1 24bit/192kHz
AUD829_3,0(0),0,31
Dostupnost: Na skladištu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Converter with unrivaled value for money and with direct analog outputs, this module is ideal for all DIY projects. Equipped with the now famous SABER ES9023 (equipping our U-SABER), Ultra low noise
Dodatne specifikacije za AUDIOPHONICS DAC EXPANSION BOARD ES9023 V2.1 24bit/192kHz
Technical characteristics
| SPECIFICATION | |
|---|---|
| Type of product | DAC |
| Conversion chip | ESS ES9023 |
| Entrance | I2S |
| Exit | RCA |
| Supported sampling rates | Up to 24bit 192kHz |
| Space available for additional clock | - |
| I2S connection | Orange: MCLK Yellow: GND White: DATA Red: LRCK Black: BCK |
| Power connection | Black: GND Red: + 5V |
| GENERAL | |
|---|---|
| Dimensions | 53.2 x 47.4mm |
| Cables | 1.13mm² / AWG16 |
| Conductors | 0.08mm² / AWG28 |
| Fixing hole centers | 43.1 x 38.1mm |
| RCA spacing | 20mm |
| Package | 1x Audiophonics DAC Saber ES9023 module 1x connector for I2S 1x connector for power supply |
