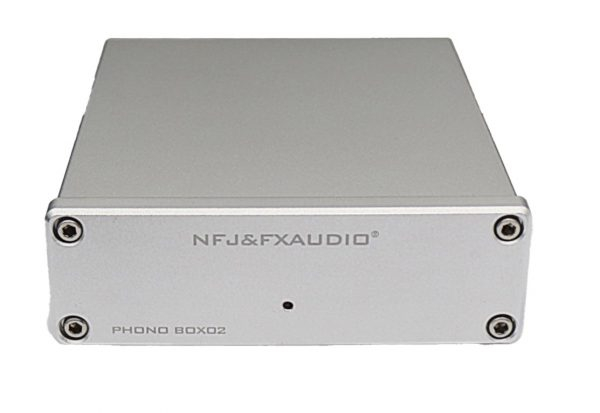

FX-AUDIO BOX02 PHONO MM/MC PREAMPLIFIER NJM2068 TL071 - PRETPOJAČALO
AUD806_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

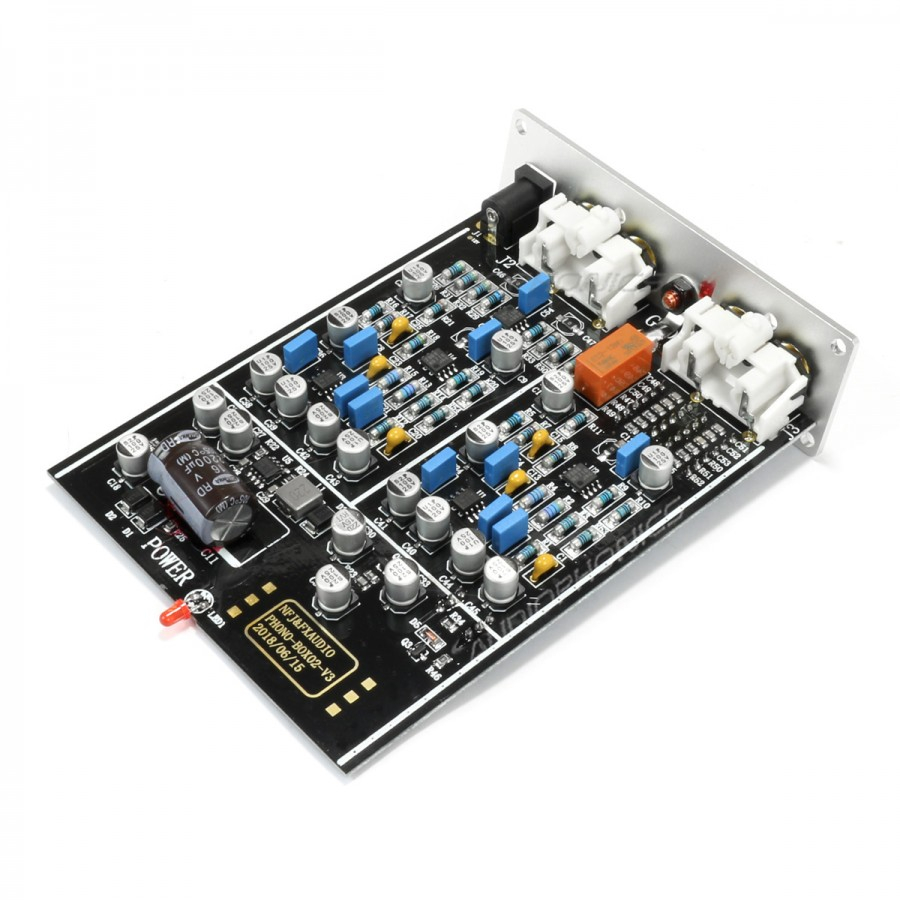

The FX-Audio BOX02 is a low-cost phono preamplifier, offering a very high quality design. It supports the board with MM and MC cells, a switch under the device to select one of the two technologies. The preamplification stage is based on low noise AOPs NJM2068 and JFET TL071C.
Dodatne specifikacije za FX-AUDIO BOX02 PHONO MM/MC PREAMPLIFIER NJM2068 TL071 - PRETPOJAČALO
| SPECIFICATIONS | |
|---|---|
| Product type | Phono MM/MC Preamplifier |
| Components | AOP NJM2068 AOP TL071 |
| Output level | 310mVrms |
| Input | 1x RCA phono MM/MC |
| Output | 1x Stereo RCA |
| THD | 0.8% |
| SNR | -76dB |
| GENERAL | |
|---|---|
| Power supply | 12V 1A via Jack 5.5/2.1mm (power adapter included) |
| Dimensions | 98 x 130 x 33mm |
| Weight | 310g |
| Color | Silver |
| Package | 1x FX-Audio BOX02 1x Power supply |
