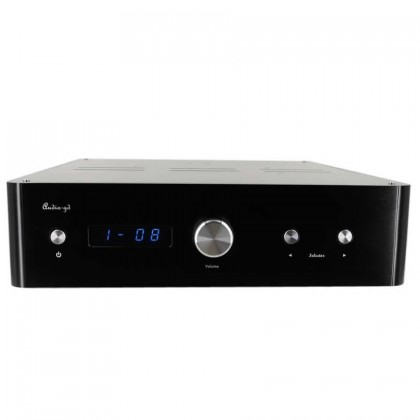

Dodatne specifikacije za AUDIO-GD MASTER HE-1 STEREO PREAMPLIFIER - PREDPOJAČALO
| SPECIFICATIONS | |
|---|---|
| SNR | > 130dB |
| THD | <0.0005% |
| Frequency Response (XLR) | 20Hz - 20kHz (0dB) / 100Hz - 100kHz (-1.5dB) / 1Hz - 300kHz (-3dB) |
| Volume control by potentiometer | 100 exponential steps |
| Gain | + 8dB (XLR) / + 16dB (RCA) |
| Max Output Level | 19V (XLR) / 9.5V (RCA) / 4.8mA (ACSS) |
| Input impedance | 94KΩ (XLR) / <5Ω (ACSS) |
| Output Impedance | 10Ω (XLR) /> 10MΩ (ACSS) |
| crosstalk | <-130dB |
| Power | 260W (3 transformers) |
Specifikacija za AUDIO-GD MASTER HE-1 STEREO PREAMPLIFIER - PREDPOJAČALO
OPĆENITO |
|---|
