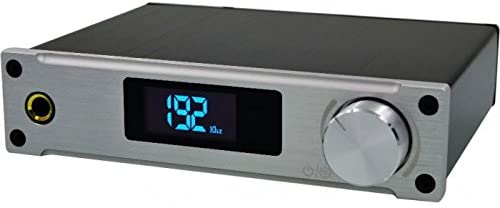

Dodatne specifikacije za ALIENTEK D8 DIGITALNO POJAČALO FDA STA326 USB XMOS2X 80W/4Ohm SILVER
Features :
- S / PDIF Interface WM8805
- Interface USB XMOS U8 (24bit / 192kHz)
- Analog to digital conversion input: ADC AK5358
- DSP ARM Cortex M3 32 bit programmable
- DAC PCM5122 112dB: Technical document in attached file below
- Headphone Amplifier MAX972232 Ohm 130mW
- OLED Display 1.3 "
- Displaying sampling rate
- Digital equalizer (bass adjustment -12dB to + 12db) (treble -12dB to + 12db)
- Low-noise filter capacitors
- Amplifier module STA326 : 2 x 80W at 4 Ohm, 2x 50W at 8 Ohm
- Filter Capacitors Power:Nichicon 4700μF
- Signal to Noise Ratio (SNR): 100dB
- Frequency response: 20Hz - 22kHz
- Supplied remote control or rotary encoder
Secondary functions:
- Auto Standby and Start Support
- Detection protection system on speaker terminals

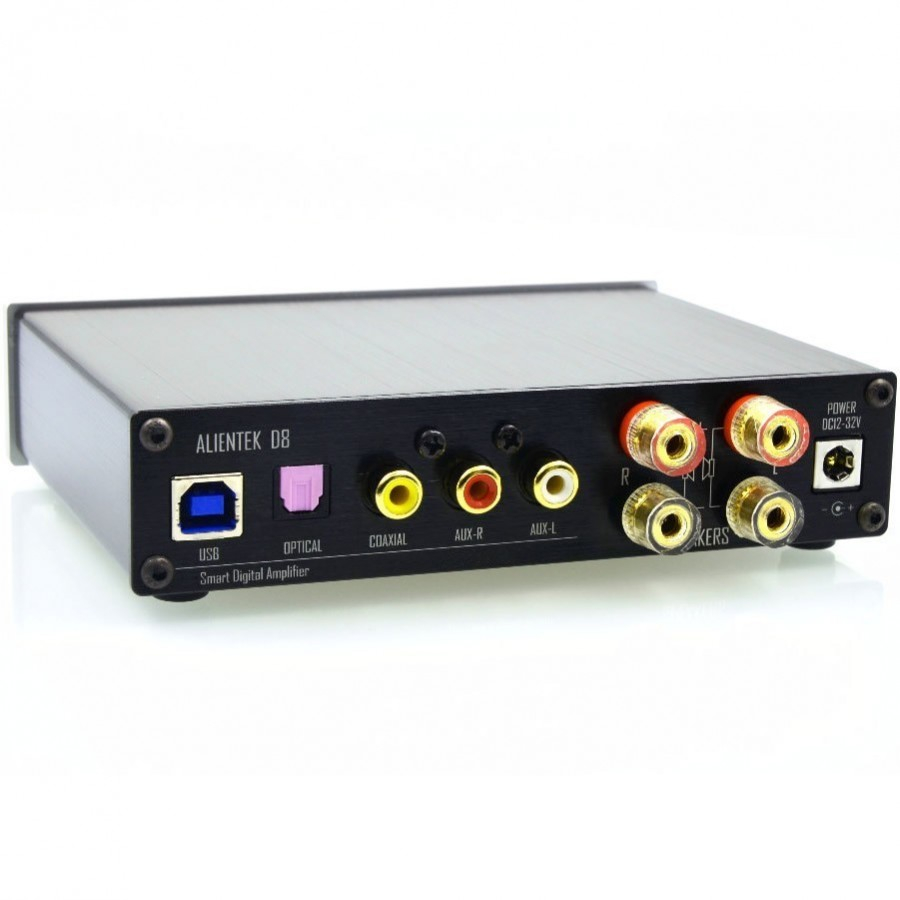

Digital and analog inputs:
- Inputs: S / PDIF Optical Toslink, Coaxial and USB-B
- RCA Plated Analog Inputs Gold
- Outputs HP: On screwed terminal blocks supporting banana plugs 4mm
- Headphone Jack Jack 6.35mm
- Supplied 28V 4.3A Power Supply
Dimensions and weight:
- Dimensions: 140x108x32mm
- Weight: 1200g
- Color facade: Silver
- Bundle: USB-A to USB-B / 4 Gold-plated Bananas / Remote Control and Power Supplies included
