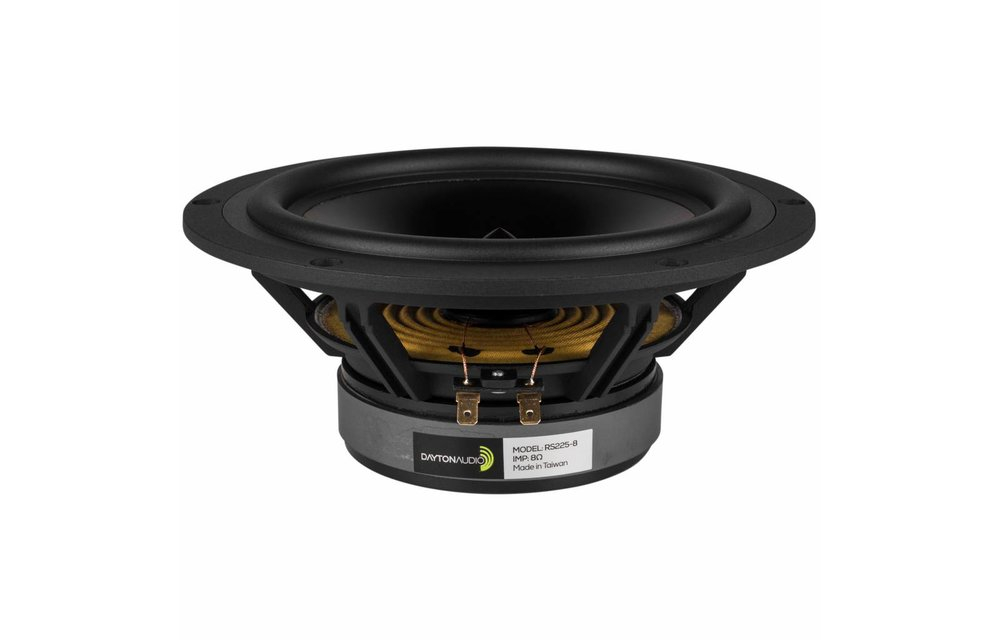

DAYTON RS225-8 8" REFERENCE WOOFER
AUD730_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.
Dodatne specifikacije za DAYTON RS225-8 8" REFERENCE WOOFER
Specifications
Article numberRS225-8
Woofer SeriesReference Series
Woofer TypeMidwoofer
Nominal Diameter8"
Power Handling (RMS)80 watts
Power Handling (max)160 watts
Impedance8 ohms
Sensitivity86.8 dB @ 2.83V/1m
Frequency Response28 - 2,400 Hz
Voice Coil Diameter38 mm
DC Resistance (Re)6.5 ohms
Voice Coil Inductance (Le)0.86 mH @ 1 kHz
Resonant Frequency (Fs)28.3 Hz
Mechanical Q (Qms)1.46
Electromagnetic Q (Qes)0.51
Total Q (Qts)0.38
Diaphragm Mass Inc. Airload (Mms)35.8g
Mechanical Compliance of Suspension (Cms)0.88 mm/N
Surface Area of Cone (Sd)213.8 cm²
Volume of Displacement (Vd)149.7 cm³
BL Product (BL)9.05 Tm
Compliance Equivalent Volume (Vas)56.8 liters
Maximum Linear Excursion (Xmax)7.0 mm
Cone / Diaphragm MaterialBlack Anodized Aluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter223 mm
Overall Depth89 mm
Baffle Cutout Diameter184 mm
# Mounting Holes6
Sealed Volume0.44 ft.³
Sealed F366 Hz
Vented Volume1.17 ft.³
Vented F338 Hz
Specifikacija za DAYTON RS225-8 8" REFERENCE WOOFER
