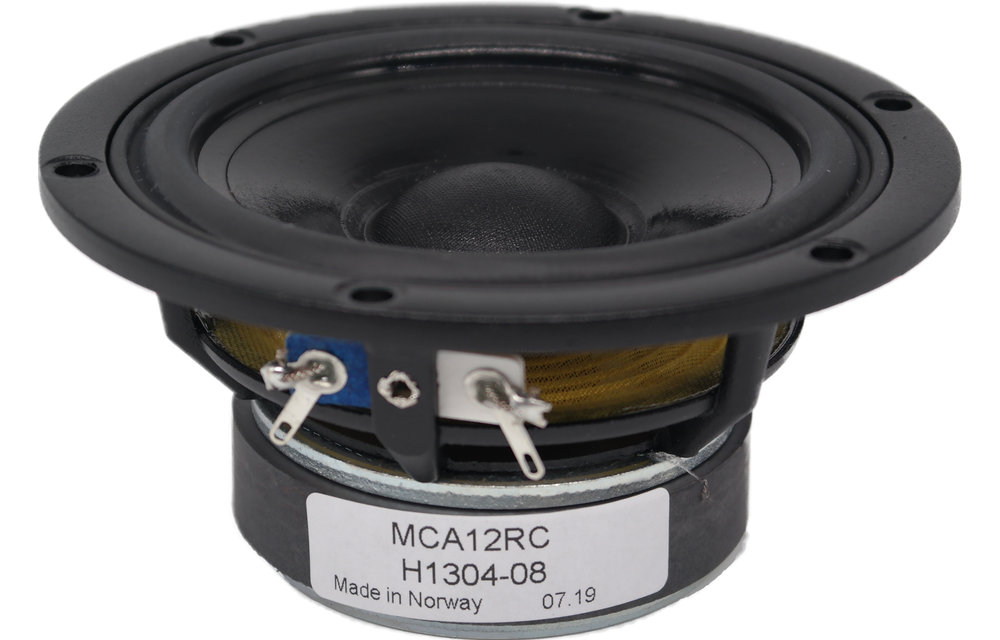

SEAS PRESTIGE MCA12RC - H1304 4.5" COATED PAPER MIDRANGE

AUD728_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/1917/image_1920?unique=7530d45
Potrebna provjera kod dobavljača
  • Tag jamstvo

75,65 € 75,65 € 75.65 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 79,63 € 79,63 € Na rate

Jednokratno Diners, sve kartice na rate

75,65 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response.

Dodatne specifikacije za SEAS PRESTIGE MCA12RC - H1304 4.5" COATED PAPER MIDRANGE

  • Specifications

    Article numberMCA12RC
    Woofer SeriesPrestige Series
    Nominal Diameter4.5"
    Power Handling (RMS)110 Watts
    Power Handling (max)400 Watts
    Impedance8 ohms
    Sensitivity86 dB 2.83V/1m
    Frequency Response400 to 5,000 Hz
    Voice Coil Diameter1.02"
    Magnet Weight8.81 oz.
    DC Resistance (Re)6.3 ohms
    Voice Coil Inductance (Le)0.31 mH
    Resonant Frequency (Fs)68 Hz
    Mechanical Q (Qms)2.42
    Electromagnetic Q (Qes)0.74
    Total Q (Qts)0.56
    Diaphragm Mass Inc. Airload (Mms)4.58g
    Mechanical Compliance of Suspension (Cms)1.2 mm/N
    Compliance Equivalent Volume (Vas)0.17 ft.³
    Maximum Linear Excursion (Xmax)0.9 mm
    Overall Outside Diameter4.74"
    Overall Depth2.38"
    Baffle Cutout Diameter3.77"
    Bolt Circle Diameter4.36"
    # Mounting Holes6
    Mounting Hole Diameter0.2"
