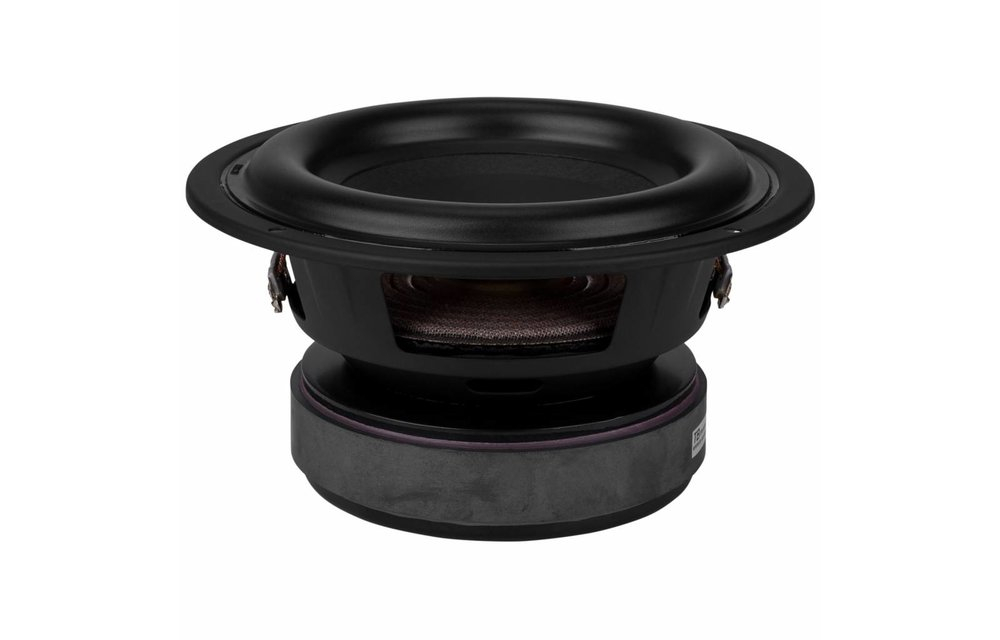

TANG BAND W6-1139SIF 6-1/2" PAPER CONE SUBWOOFER SPEAKER
AUD726_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
The Tang Band W6-1139SIF 6-1/2" driver will surprise and impress when installed in subwoofer systems for compact home theater systems, multimedia setups, and mobile audio installations.
Dodatne specifikacije za TANG BAND W6-1139SIF 6-1/2" PAPER CONE SUBWOOFER SPEAKER
Specifications
Article numberW6-1139SIF
Woofer TypeSubwoofer
Nominal Diameter6-1/2"
Power Handling (RMS)50 Watts
Power Handling (max)100 Watts
Impedance4 ohms
Sensitivity83 dB 1W/1m
Frequency Response35 to 800 Hz
Voice Coil Diameter1.52"
Magnet Weight29.2 oz.
DC Resistance (Re)3.6 ohms
Voice Coil Inductance (Le)0.47 mH
Resonant Frequency (Fs)35 Hz
Mechanical Q (Qms)2.65
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.4
Diaphragm Mass Inc. Airload (Mms)39.91g
Mechanical Compliance of Suspension (Cms)0.6 mm/N
Surface Area of Cone (Sd)140 cm²
Volume of Displacement (Vd)161 cm³
BL Product (BL)8.47 Tm
Compliance Equivalent Volume (Vas)11.78 liters
Maximum Linear Excursion (Xmax)11.5 mm
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6.95"
Overall Depth4.33"
Baffle Cutout Diameter5.57"
# Mounting Holes4
Sealed Volume0.13 ft.³
Sealed F370 Hz
Vented Volume0.33 ft.³
Vented F338 Hz
