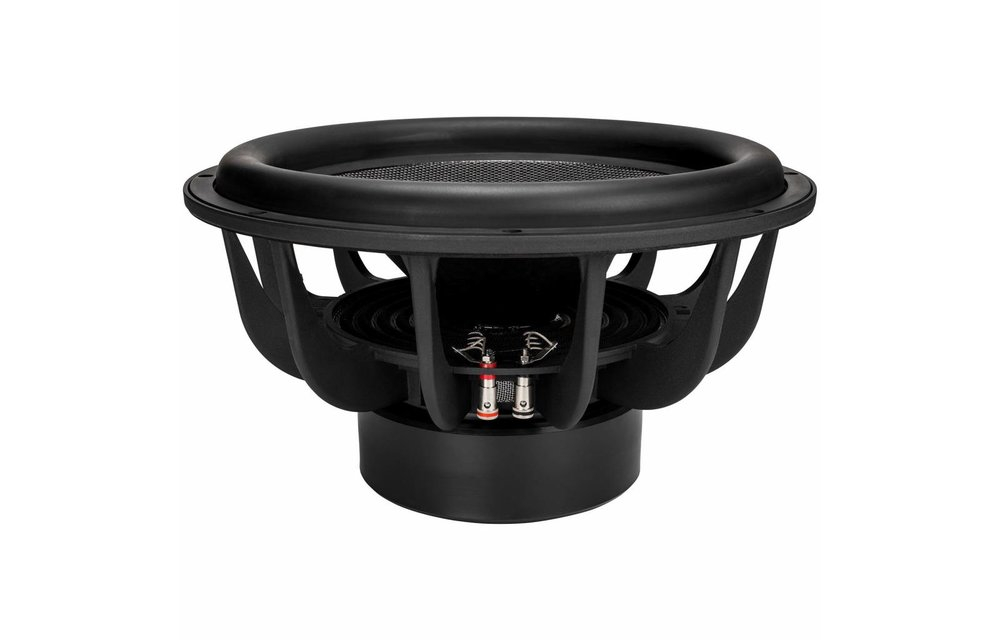

Dodatne specifikacije za DAYTON UM15-22 15" ULTIMAX DVC SUBWOOFER
Specifications
Article numberUM15-22
Woofer SeriesUltimax Series
Woofer TypeSubwoofer
Power Handling (RMS)800 watts
Power Handling (max)1,600 watts
Impedance4 ohms
Sensitivity86.5 dB @ 2.83V/1m
Frequency Response15 - 1,000 Hz
Voice Coil Diameter63.5 mm
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)1.31 mH
Resonant Frequency (Fs)19.5 Hz
Mechanical Q (Qms)2.40
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.47
Diaphragm Mass Inc. Airload (Mms)279.4 g
Mechanical Compliance of Suspension (Cms)0.24 mm/N
Surface Area of Cone (Sd)814.6 cm²
Volume of Displacement (Vd)1,548 cm³
BL Product (BL)15.4 Tm
Compliance Equivalent Volume (Vas)224.3 liters
Maximum Linear Excursion (Xmax)19 mm
Cone / Diaphragm MaterialNomex Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Dual Voice CoilYes
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter388 mm
Overall Depth226 mm
Baffle Cutout Diameter350 mm
# Mounting Holes8
Sealed Volume3.1 cubic ft. (net internal) with 3 lbs. of Acousta-Stuf polyfill
Sealed F335 Hz with a 0.707 Qtc alignment
Vented Volume6.0 cubic ft. (net internal, not including driver or port volume) with 6 lbs. of Acousta-Stuf tuned to 18 Hz with two 4" diameter by 26" long flared ports
Vented F322 Hz. Larger cabinets and lower tuning frequencies are possible.
