TANG BAND W3-1878 3" FULL RANGE DRIVER
AUD724_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

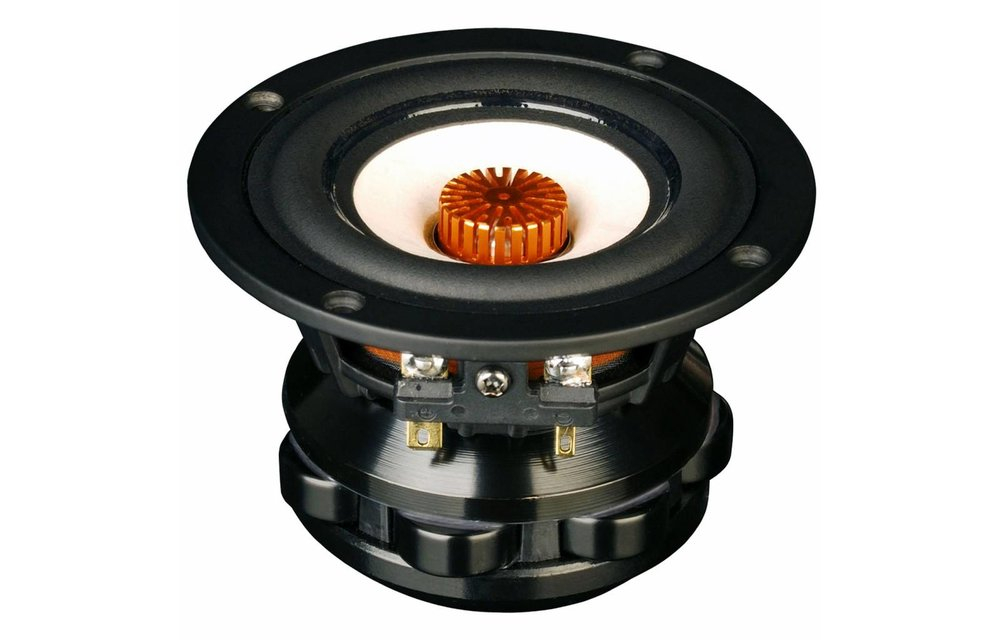

The Tang Band W3-1878 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion.
Dodatne specifikacije za TANG BAND W3-1878 3" FULL RANGE DRIVER
Specifications
Article numberW3-1878
Woofer TypeFull-range
Nominal Diameter3"
Power Handling (RMS)12 Watts
Power Handling (max)25 Watts
Impedance8 ohms
Sensitivity88 dB 1W/1m
Frequency Response75 to 20,000 Hz
Voice Coil Diameter0.8"
DC Resistance (Re)6.5 ohms
Voice Coil Inductance (Le)0.02 mH
Resonant Frequency (Fs)75 Hz
Mechanical Q (Qms)1.67
Electromagnetic Q (Qes)0.34
Total Q (Qts)0.28
Diaphragm Mass Inc. Airload (Mms)2g
Mechanical Compliance of Suspension (Cms)2.12 mm/N
Surface Area of Cone (Sd)32 cm²
BL Product (BL)4.3 Tm
Compliance Equivalent Volume (Vas)0.11 ft.³
Maximum Linear Excursion (Xmax)4.2 mm
Cone / Diaphragm MaterialBamboo Fiber / Paper
Surround MaterialRubber
Magnet MaterialNeodymium
Overall Outside Diameter3.66"
Overall Depth2.54"
Baffle Cutout Diameter2.97"
# Mounting Holes4
Sealed Volume0.02 ft.³
Sealed F3212 Hz
Vented Volume0.03 ft.³
Vented F3135 Hz
