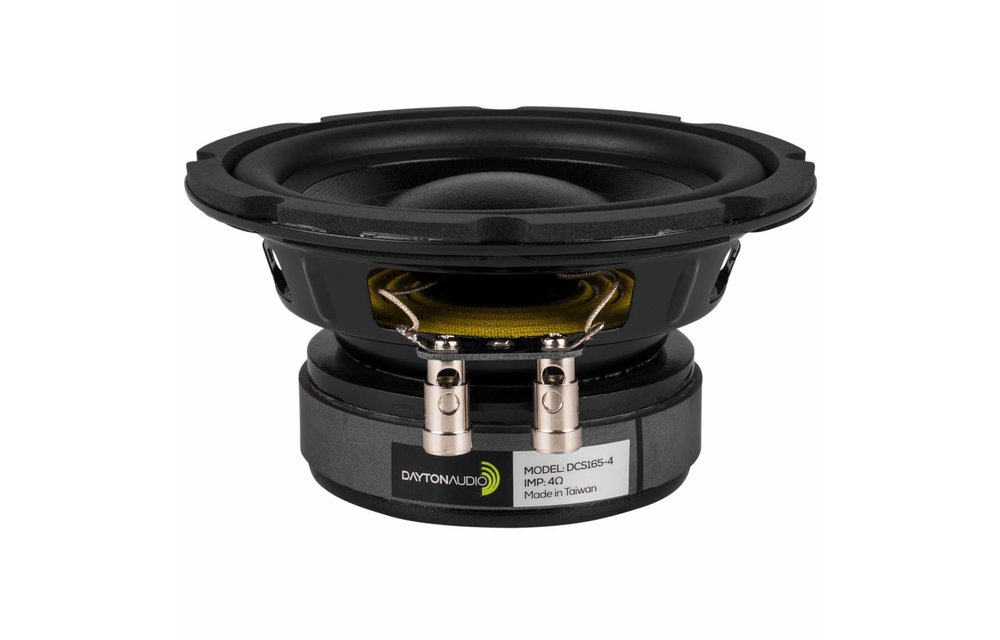

DAYTON DCS165-4 6-1/2" CLASSIC SUBWOOFER 4 OHM
AUD723_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.
Dodatne specifikacije za DAYTON DCS165-4 6-1/2" CLASSIC SUBWOOFER 4 OHM
Specifications
Article numberDCS165-4
Woofer SeriesClassic Series
Woofer TypeSubwoofer
Nominal Diameter6.50"
Power Handling (RMS)100 watts
Power Handling (max)200 watts
Impedance4 ohms
Sensitivity87.4 dB @ 2.83V/1m
Frequency Response36 - 1,100 Hz
Voice Coil Diameter38.5 mm
DC Resistance (Re)3.4 Ohms
Voice Coil Inductance (Le)1.43 mH @ 1 kHz
Resonant Frequency (Fs)35.7 Hz
Mechanical Q (Qms)6.62
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.34
Diaphragm Mass Inc. Airload (Mms)39.5g
Mechanical Compliance of Suspension (Cms)0.5 mm/N
Surface Area of Cone (Sd)124.7 cm²
Volume of Displacement (Vd)74.8 cm³
BL Product (BL)9.15 Tm
Compliance Equivalent Volume (Vas)12.1 liters
Maximum Linear Excursion (Xmax)6 mm
Cone / Diaphragm MaterialPaper / Kevlar Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton®/Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6.57"
Overall Depth3.25"
Baffle Cutout Diameter5.62"
# Mounting Holes8
