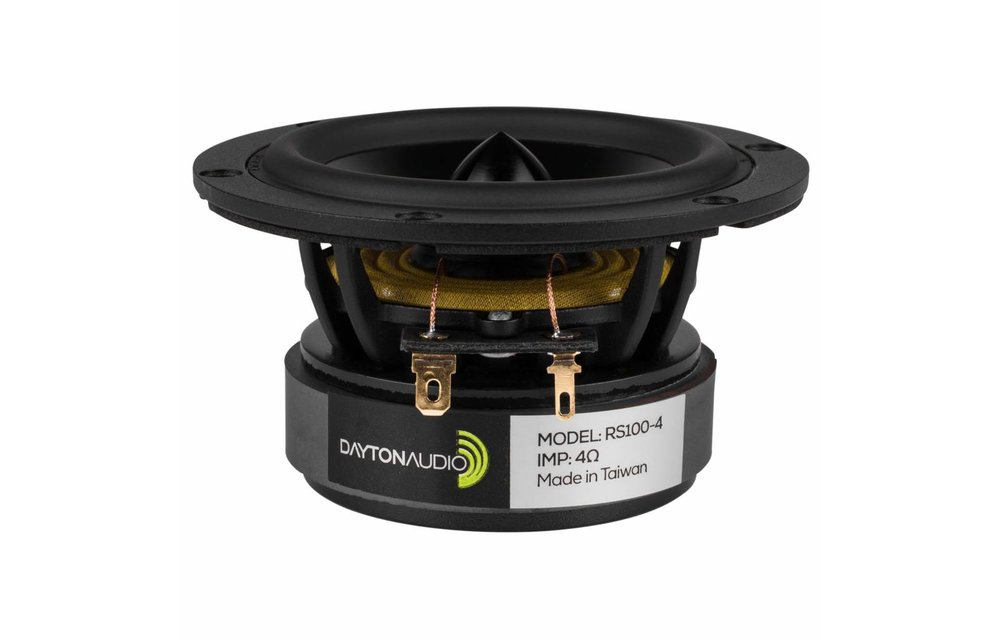

DAYTON FULL RANGE DRIVER RS100-4 30W
AUD720_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Full-Range , 4" , 60 watts , 80 - 20,000 Hz , 4 ohms
Dodatne specifikacije za DAYTON FULL RANGE DRIVER RS100-4 30W
Specifications
Article numberRS100-4
Woofer SeriesReference Series
Woofer TypeFull-Range
Nominal Diameter4"
Power Handling (RMS)30 watts
Power Handling (max)60 watts
Impedance4 ohms
Sensitivity87.5 dB @ 2.83V/1m
Frequency Response80 - 20,000 Hz
Voice Coil Diameter25 mm
DC Resistance (Re)3 ohms
Voice Coil Inductance (Le)0.28 mH @ 1 kHz
Resonant Frequency (Fs)84.8 Hz
Mechanical Q (Qms)2.55
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.53
Diaphragm Mass Inc. Airload (Mms)4.3g
Mechanical Compliance of Suspension (Cms)0.83 mm/N
Surface Area of Cone (Sd)35.3 cm²
Volume of Displacement (Vd)14.1 cm³
BL Product (BL)3.18 Tm
Compliance Equivalent Volume (Vas)1.45 liters
Maximum Linear Excursion (Xmax)4.0 mm
Cone / Diaphragm MaterialBlack Anodized Aluminum Cone
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter98 mm
Overall Depth51 mm
Baffle Cutout Diameter77.2 mm
# Mounting Holes6
Sealed Volume0.03 ft.³
Sealed F3143 Hz
Vented Volume0.1 ft.³
Vented F372 Hz
