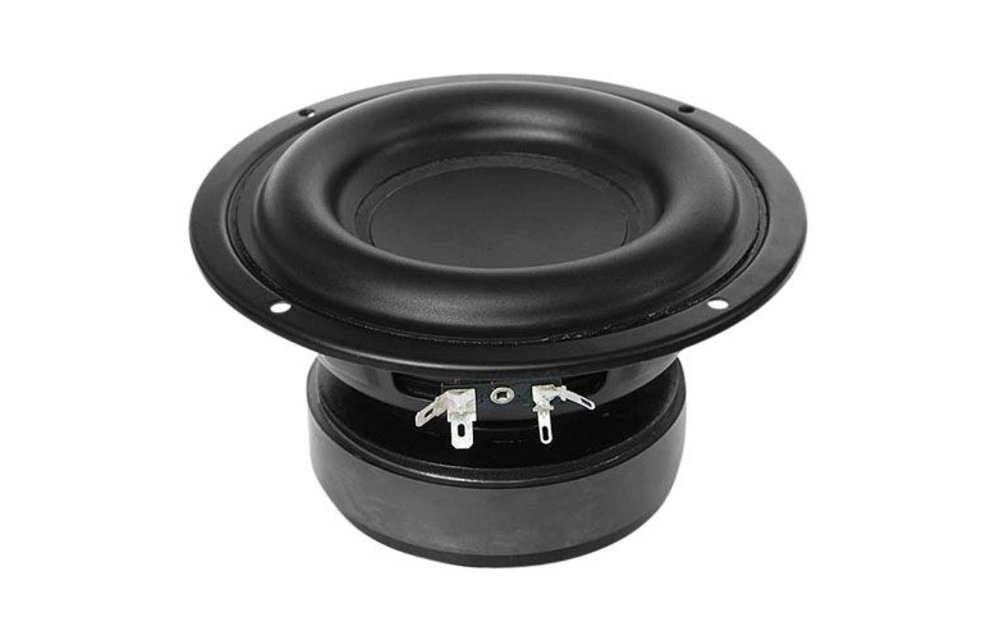

TANG BAND W5-1138SMF 5-1/4" PAPER CONE SUBWOOFER SPEAKER
AUD719_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.
Dodatne specifikacije za TANG BAND W5-1138SMF 5-1/4" PAPER CONE SUBWOOFER SPEAKER
Specifications
Article numberW5-1138SMF
Woofer TypeSubwoofer
Nominal Diameter5-1/4"
Power Handling (RMS)40 Watts
Power Handling (max)80 Watts
Impedance4 ohms
Sensitivity82 dB 1W/1m
Frequency Response45 to 1,500 Hz
Voice Coil Diameter1.25"
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.34 mH
Resonant Frequency (Fs)45 Hz
Mechanical Q (Qms)3.56
Electromagnetic Q (Qes)0.57
Total Q (Qts)0.49
Diaphragm Mass Inc. Airload (Mms)28.81g
Mechanical Compliance of Suspension (Cms)0.37 mm/N
Surface Area of Cone (Sd)94 cm²
BL Product (BL)7.17 Tm
Compliance Equivalent Volume (Vas)0.17 ft.³
Maximum Linear Excursion (Xmax)9.25 mm
Cone / Diaphragm MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6.14"
Overall Depth3.67"
Baffle Cutout Diameter4.74"
# Mounting Holes4
Sealed Volume0.1 ft.³
Sealed F373 Hz
Vented Volume0.26 ft.³
Vented F335 Hz
