Do isteka zaliha

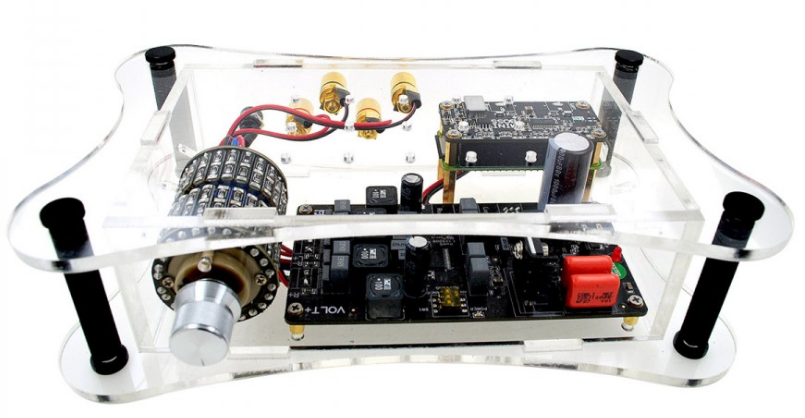

ALLO MINIBOSS PLAYER PLUS DAC 32BIT 384KHZ AMPLIFIER 2X50W
AUD702_1,0(0),0,0
Dostupnost: Na skladištu
Besplatna dostava
Jamstvo 24 mjeseci
Uređaj je isporučen sa 19V DC 60W 3.15A napajanjem. Ali morate koristiti drugo napajanje od 5V kako bi napajali Raspberry Pi.
Dodatne specifikacije za ALLO MINIBOSS PLAYER PLUS DAC 32BIT 384KHZ AMPLIFIER 2X50W
Technical characteristics
| GLOBAL SPECIFICATIONS | |
|---|---|
| Product type | DAC |
| Output | Spaeker terminal |
| Power supply included | 19V DC 60W 3.15A, with UK/EU/US adapters |
| MINIBOSS DAC | |
|---|---|
| DAC chip | PCM5122 |
| Clocks | 2x NDK : 45MHz + 49MHz |
| Supported sampling rate | Up to 32bit 384kHz |
| VOLT+ AMP | |
|---|---|
| Amplification chip | TPA3118D2 |
| Max power | 2x 50W @ 4Ω |
| SNR | 102dB |
| RASPBERRY PI ZERO | |
|---|---|
| CPU | ARM11 Broadcom BCM 2835 Single Core 1GHz |
| RAM | 512MB |
| Available connectors | 1x Mini HDMI 2x Micro USB (one for power supply) |
