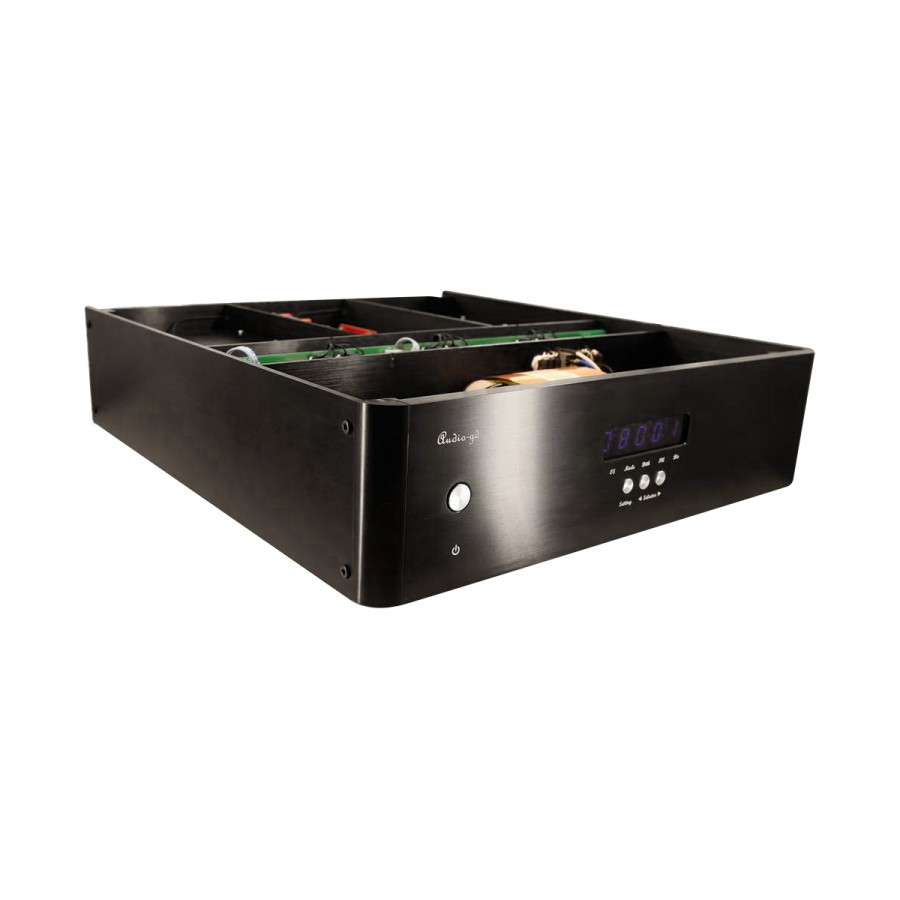

AUDIO-GD R-7HE BALANCED DAC R2R FPGA I2S HDMI AMANERO 32BIT 384KHZ DSD ACCUSILICON
AUD682_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Audio-GD is developing its HE range, composed of its most top-of-the-range products. They benefit from the longest design and testing period since the brand's inception.
Dodatne specifikacije za AUDIO-GD R-7HE BALANCED DAC R2R FPGA I2S HDMI AMANERO 32BIT 384KHZ DSD ACCUSILICON
| OVERSAMPLING FILTERS | |
|---|---|
| Mode 0 | NOS Mode |
| Mode 2 | 2x Oversampling |
| Mode 4 | 4x Oversampling |
| Mode 8 | 8x Oversampling |
| NOS FILTERS | |
|---|---|
| Mode 1 | Simplest data processing |
| Mode 2 | FIFO data |
| Mode 3 | Fastest data processing |
Technical characteristics
| SPECIFICATIONS | |
|---|---|
| Product type | DAC R2R |
| SNR | > 120dB |
| Output impedance | < 5 Ohm (XLR, RCA) |
| Output level | RCA : 2.5V XLR : 5V ACSS : 2+2MA |
| Frequency response | 20Hz - 100kHz |
| THD | < 0.0005% |
| Input sensitivity | Coaxial 75 Ohm : 0.5Vp-p Optical : 19dBm |
| Supported OS (USB) | Windows, OSX, Linux, ISO |
| Sampling rate | USB, I2S : 32bits 44.1kHz - 384kHz / DSD 64-512 Coaxial, Optical : 24bits 44.1kHz - 192kHz |

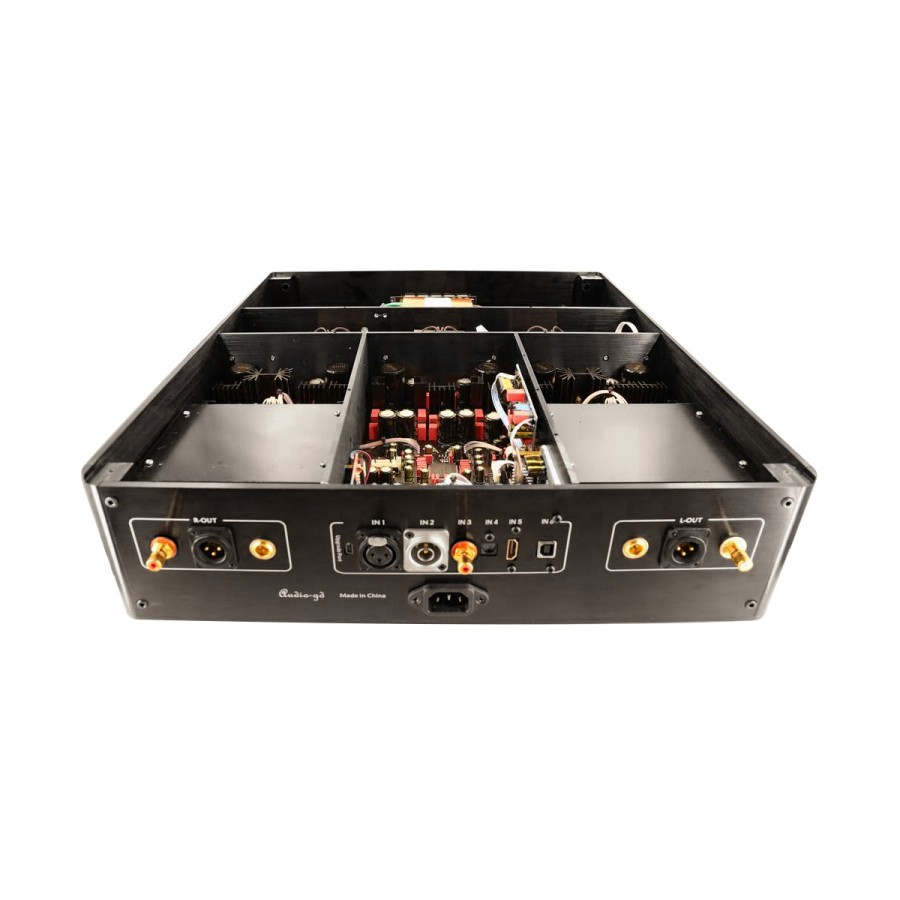

| Inputs | 1x Coaxial RCA SPDIF 1x Coaxial BNC SPDIF 1x Optical Toslink 1x I2S LVDS via HDMI 1x USB Amanero 1x XLR |
| Outputs | 1x Balanced ACSS 1x Balanced XLR 1x Single-Ended RCA |
| GENERAL | |
|---|---|
| Consumption | 73W |
| Dimensions | 430 x 430 x 125mm |
| Housing material | 100% Aluminium |
| Color | Noir |
| Accessories | 1x Power cable 1x USB cable |
