AUDIO-GD R-28 DAC R2R DSD NATIF AMANERO PREAMPLIFIER HEADPHONE AMPLIFIER
AUD681_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci

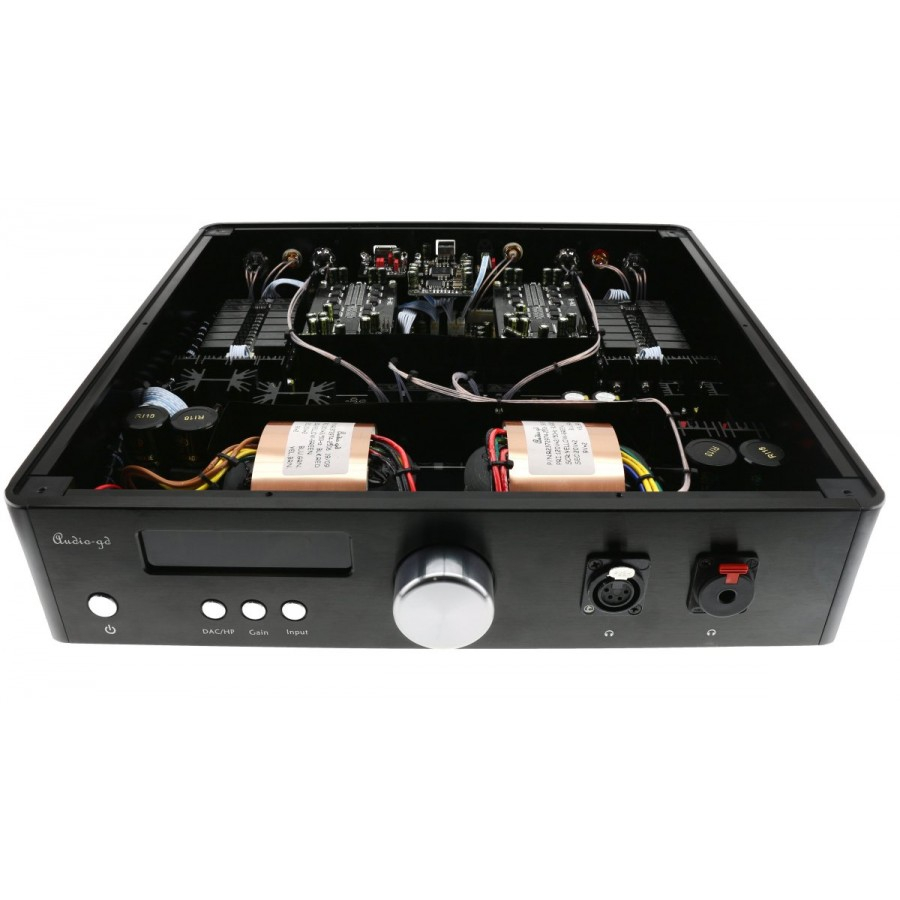

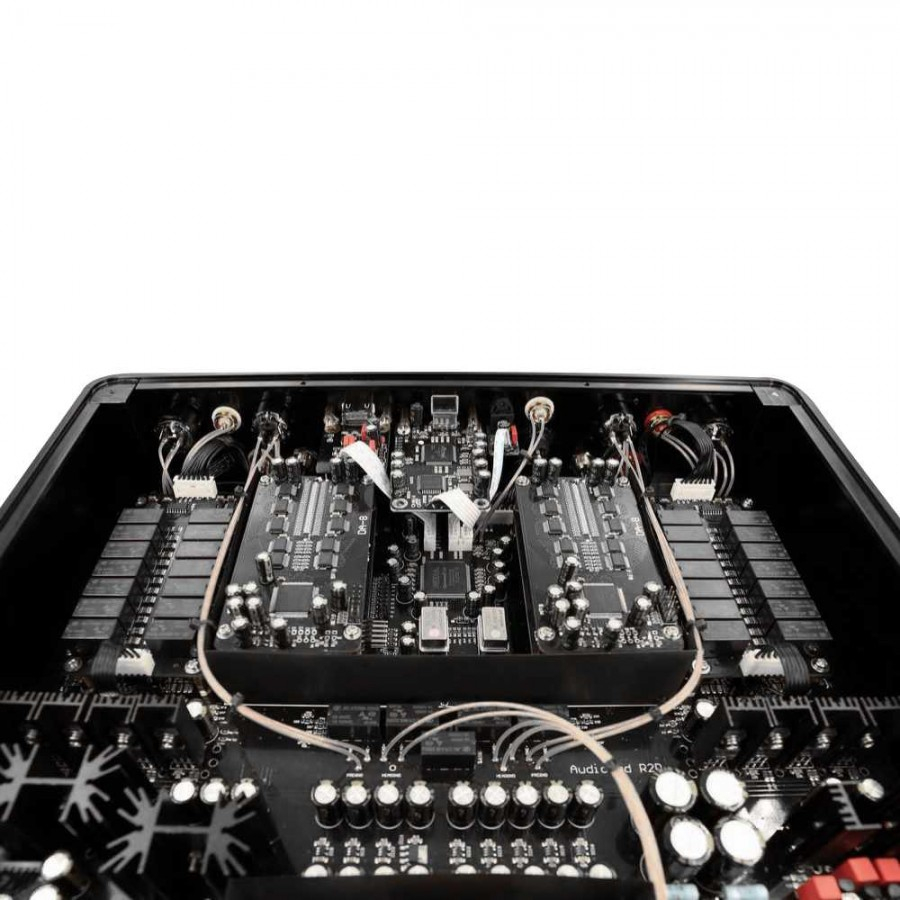

The R28 Audio-GD is an all-in-one unit of rare versatility that merges in a single housing a very high quality full R-2R DAC with a discreet balanced preamplifier and a high precision headphone amplifier.
Dodatne specifikacije za AUDIO-GD R-28 DAC R2R DSD NATIF AMANERO PREAMPLIFIER HEADPHONE AMPLIFIER
| Type | R-2R DAC Headphone amplifier Preamplifier |
| Inputs | Digital: HDMI (I2S) / USB / Optical / Coaxial Analog: RCA / XLR |
| Outputs | RCA / XLR / ACSS |
| SNR | >120dB |
| THD total | <0.002% |
| THD (integrated amplifiers) | 0.0003% @ 0dBV |
| Gain | L : +7dBH : +17dBF : +17dB |
| volume control | Yes (100 high levels Exponential) |
| Balancing channels | <0.05dB |
| Frequency response | 20Hz-20kHz1Hz - 140kHz (-3dB single amplifier) |
| Output Level | Headphone output 19V RMS Variable preamp output: 10V RMS DAC output variable: 5V RMS |
| Headphone Output Power | 9500mW / 25 Ohm 8000mW / 40 Ohm 3500mW / 100 Ohm 1200mW / 300 Ohm 600mW / 600 Ohm |
| Output Impedance | Headphones: 1 Ohm DAC / preamp: 5 Ohm |
| Input Sensitivity | 0.5Vp-p (75 Ohm Coaxial) 19dBm (Optical) |
| Support OS | Windows (with driver), OSX, Linux, ISO |
| Freq. Sample | USB : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz , 192kHz, 352.8kHz,384kHz COAX : 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz ,192kHz OPTIQUE : 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Power Supply | 220-240V AC50/60Hz |
| Power consumption | 33W |
| Weight | 7.5kg |
| Dimensions | 360 x 360 x 85 mm |
| Housing | aluminum |
| Accessories | Power cable x1 USB cable x1 Remote aluminum x1 |
