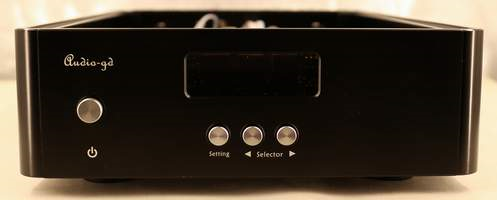

AUDIO-GD D77 DEDICATED DISCRETE FULLY BALANCED DAC
AUD677_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Built In FPGA Processor to Reject Jitter, Dual Sabre ES9038Pro, 32bit / PCM384K /DSD512 asynchronous transfer, Amanero 384 apply the FPGA synchronous clock, HDMI & USB support up to DSD512, Built with OCC and Hi-end parts
Dodatne specifikacije za AUDIO-GD D77 DEDICATED DISCRETE FULLY BALANCED DAC
| S/N Ratio | >120DB (XLR output) |
|
THD |
<0.0003% | |
Output impedance |
4.7 ohm | |
Output Level |
2.5V (RCA) 5V (XLR) 2+2MA (ACSS) |
|
| Input Sensitivity | 0.5 Vp-p(75 Ohms, Coaxial) 19 dBm (Optical) |
|
| Frequency Response | 20Hz - 20KHz (< - 0.1DB) |
|
Support Operate Systems (USB) |
|
|
| Support Sampling | PCM of USB and I2S: 44.1kHz-84kHz DSD of USB and I2S: DSD64-512 Coaxial model: 44.1kHz-192kHz Optical model: 44.1kHz-96kHz |
|
| Power Requirement | Version 1: 100-130V AC 50/60 Hz Version 2: 220-240V AC 50/60 Hz |
|
| Power Consumption | 30W |
|
| Package Weight | Approximately 5.5KG |
|
Dimensions |
W240 X L360 X H80 (MM, Fully aluminium ) | |
| Accessories | AC power cord X1 USB cable X1 |
|
Specifikacija za AUDIO-GD D77 DEDICATED DISCRETE FULLY BALANCED DAC
OPĆENITO |
|---|
