MINIDSP 2X4 HD BOXED USB DAC DIGITAL SIGNAL PROCESSOR

AUD628_2,0(0),0,16
https://neutrinomobile.hr/web/image/product.template/1824/image_1920?unique=e7b5302
Dostupnost: Na skladištu
  • BRAND
  • Tag jamstvo

275,95 € 275,95 € 275.95 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 290,47 € 290,47 € Na rate

Jednokratno Diners, sve kartice na rate

275,95 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava
Jamstvo 24 mjeseci

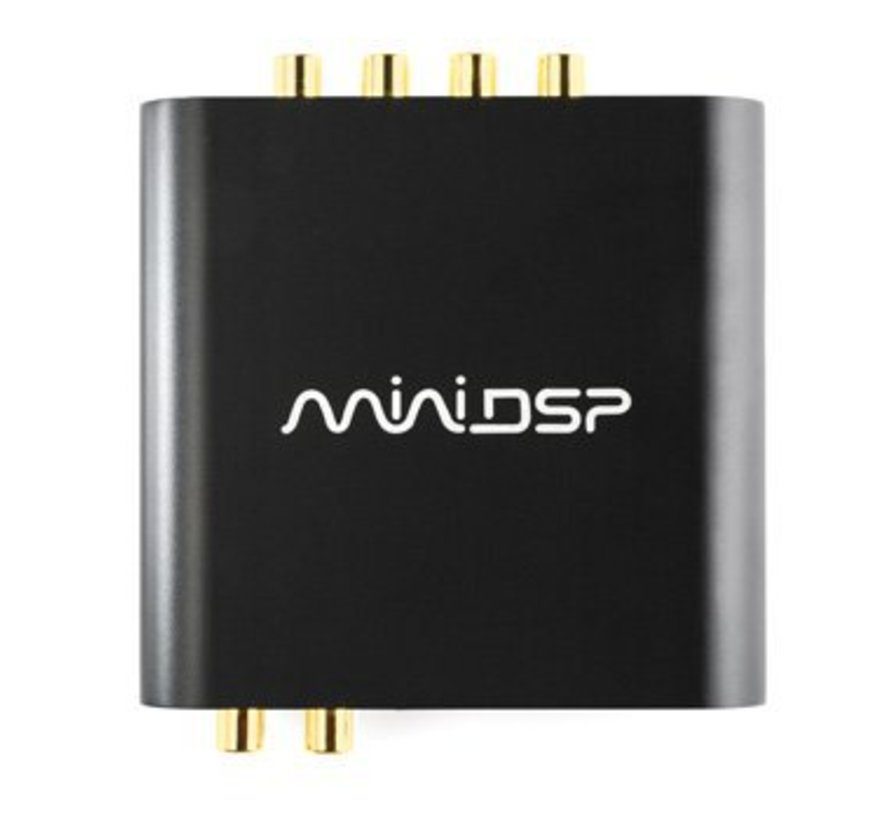

MiniDSP 2X4HD sučelje je procesor za digitalno filtriranje. Koristi 24-bitni / 192kHz DAC (digitalno/analogni pretvarač) sa SPDIF Toslink i asinkronim USB Audio Class 2.0 ulazima. Kao i većina miniDSP uređaja, 2x4 HD pruža moćne i pristupačne alate za implementaciju digitalnog filtera (IIR Butterworth / Linkwitz Riley 6 do 48dB) i parametarskog ekvilajzera. Ulazno/izlazne mogućnosti također dobivaju nadogradnju, uz dodatak USB audio streaminga do 192 kHz i TOSLINK digitalnog ulaza.

Dodatne specifikacije za MINIDSP 2X4 HD BOXED USB DAC DIGITAL SIGNAL PROCESSOR

Digital Signal Processor EngineAnalog Devices Fixed point DSP SHARC
ADSP21489

Internal Processing resolution
& Sample rate

32 bit / 96kHz with 2x4HD1 plugin

Input/Ouput Configuration

2 in / 4 out

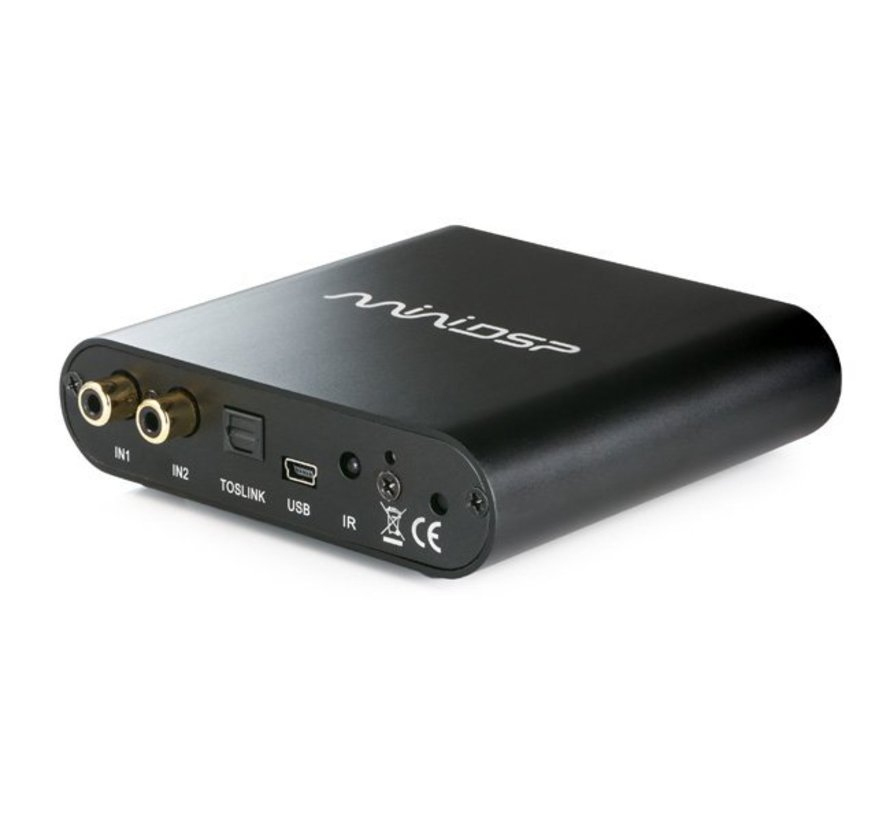

Audio Input Connectivity

Unbalanced analog input, RCA terminated
Stereo Digital Inputs: TOSLINK (optical)
Stereo USB audio input: USB Audio
Supported ASCR: 20~216kHz

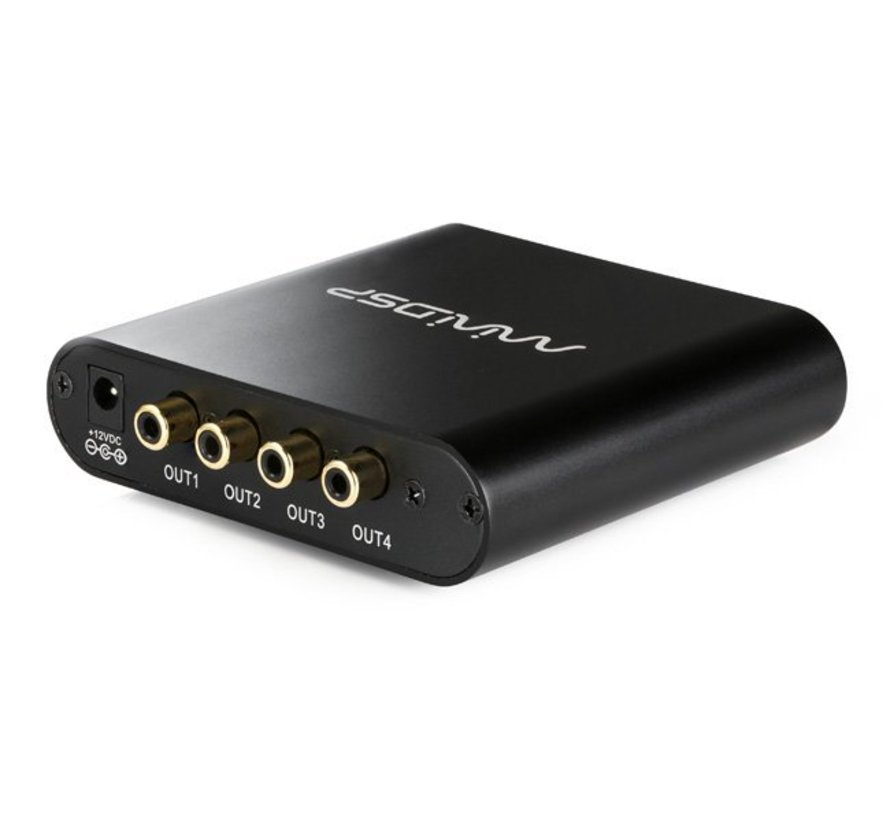

Audio Output Connectivity

Unbalanced output, RCA terminated
USB Audio streaming: USB audio 4ch

Input / Output Max Levels

IN: 2Vrms / 4Vrms (jumper-selectable)
OUT: 2Vrms

Input Impendance
10 kΩ
Output Impedance560 Ω
Calibration SoftwareminiDSP 2x4 HD1 plug-in
Filtering TechnologyFIR + IIR
DSP PresetsUp to 4 presets
Dimensions27 x 119 x 107 mm
Power12 VDC single supply
2.1 mm round plug
2.5W




  • 1 x MiniDSP 2x4 HD, board assembled and ready to use
  • 1 x 12V power supply with UK/EU/US/AU plugs
  • 1 x IR remote
  • 1 x shielded USB cable
  • 1 x plugin automatically included in the user downloads
