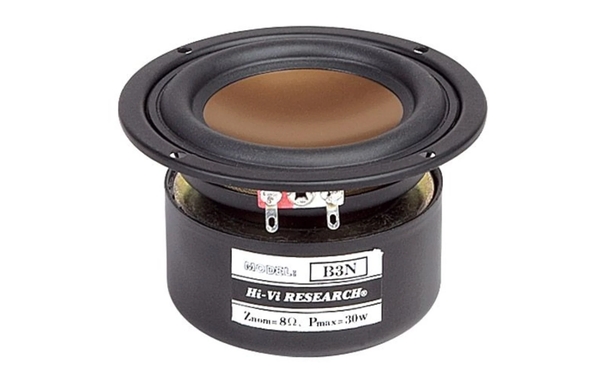

Hivi Swan B3N 3" Aluminum Driver Round Frame
AUD2364_0,0(2),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
Konusi od brončane/aluminijske legure, gumeni okviri, kozmetički čelični okviri i zaštićene strukture motora odlike su HiVi B serije zvučnika punog raspona. Ovi driveri mogu pokriti široki dio audio spektra, a magnetski zaštićeni dizajn omogućuje korištenje u središnjem kanalu i drugim multimedijskim primjenama.
Dodatne specifikacije za Hivi Swan B3N 3" Aluminum Driver Round Frame
Specifications
- Article number
- B3N
- EAN
- 0844632024962
- Woofer Type
- Midwoofer
- Nominal Diameter
- 3"
- Power Handling (RMS)
- 10 Watts
- Power Handling (max)
- 30 Watts
- Impedance (Z)
- 8 ohms
- Sensitivity (SPL at 1m / 2.83V)
- 81 dB
- Frequency Response
- 80 to 12,000 Hz
- Voice Coil Diameter
- 0.75"
- DC Resistance (Re)
- 6.5 ohms
- Resonant Frequency (Fs)
- 77 Hz
- Mechanical Q (Qms)
- 4.48
- Electromagnetic Q (Qes)
- 1.07
- Total Q (Qts)
- 0.86
- Diaphragm Mass Inc. Airload (Mms)
- 3.2g
- Mechanical Compliance of Suspension (Cms)
- 1.32 mm/N
- Surface Area of Cone (Sd)
- 30 cm²
- BL Product (BL)
- 3.1 Tm
- Compliance Equivalent Volume (Vas)
- 0.06 ft.³
- Maximum Linear Excursion (Xmax)
- 3 mm
- Cone / Diaphragm Material
- Aluminum
- Voice Coil Wire Material
- CCA
- Voice Coil Former
- Kapton® / Polyimide
- Dual Voice Coil
- No
- Magnet Material
- Ferrite
- Shielded
- Yes
- Overall Outside Diameter
- 3.5"
- Overall Depth
- 2.125"
- Baffle Cutout Diameter
- 2.875"
- # Mounting Holes
- 4
- Sealed Volume
- 0.16 ft.³
- Sealed F3
- 76 Hz
- Vented Volume
- 0.28 ft.³
- Vented F3
- 44 Hz
- Article number
- B3N
- EAN
- 0844632024962
- Woofer Type
- Midwoofer
- Nominal Diameter
- 3"
- Power Handling (RMS)
- 10 Watts
- Power Handling (max)
- 30 Watts
- Impedance (Z)
- 8 ohms
- Sensitivity (SPL at 1m / 2.83V)
- 81 dB
- Frequency Response
- 80 to 12,000 Hz
- Voice Coil Diameter
- 0.75"
- DC Resistance (Re)
- 6.5 ohms
- Resonant Frequency (Fs)
- 77 Hz
- Mechanical Q (Qms)
- 4.48
- Electromagnetic Q (Qes)
- 1.07
- Total Q (Qts)
- 0.86
- Diaphragm Mass Inc. Airload (Mms)
- 3.2g
- Mechanical Compliance of Suspension (Cms)
- 1.32 mm/N
- Surface Area of Cone (Sd)
- 30 cm²
- BL Product (BL)
- 3.1 Tm
- Compliance Equivalent Volume (Vas)
- 0.06 ft.³
- Maximum Linear Excursion (Xmax)
- 3 mm
- Cone / Diaphragm Material
- Aluminum
- Voice Coil Wire Material
- CCA
- Voice Coil Former
- Kapton® / Polyimide
- Dual Voice Coil
- No
- Magnet Material
- Ferrite
- Shielded
- Yes
- Overall Outside Diameter
- 3.5"
- Overall Depth
- 2.125"
- Baffle Cutout Diameter
- 2.875"
- # Mounting Holes
- 4
- Sealed Volume
- 0.16 ft.³
- Sealed F3
- 76 Hz
- Vented Volume
- 0.28 ft.³
- Vented F3
- 44 Hz
Specifikacija za Hivi Swan B3N 3" Aluminum Driver Round Frame
