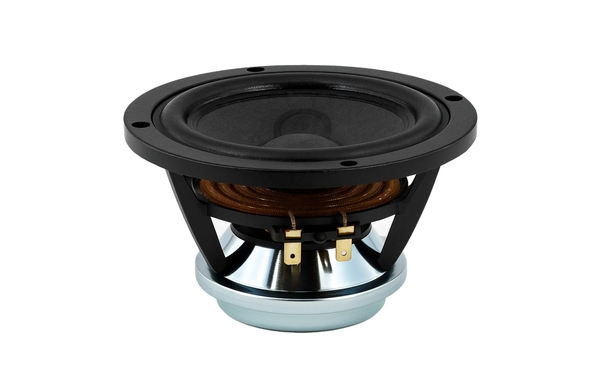

SCAN-SPEAK ILLUMINATOR 12MU/8731T00 4" WOOFER
AUD2357_0,0(0),2,2
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Illuminator wooferi temelje se na kompaktnim motornim sustavima s velikim neodimijskim prstenastim magnetima. Patentirani motor nudi vrlo dug linearni hod zajedno s vrlo visokim faktorom sile. Gornja ploča je oblikovana tako da "vodi" strujanje zraka oko motora, a s vrlo otvorenim dizajnom kućišta od lijevanog aluminija, zvučnik je praktički bez kompresije.
Dodatne specifikacije za SCAN-SPEAK ILLUMINATOR 12MU/8731T00 4" WOOFER
Specifications
- Article number
- 12MU/8731T00
- EAN
- 0696277268382
- Woofer Series
- Scan-Speak Illuminator series
- Woofer Type
- Midwoofer
- Power Handling (RMS)
- 80 Watts
- Power Handling (max)
- 150 Watts
- Impedance (Z)
- 8 ohms
- Sensitivity (SPL at 1m / 2.83V)
- 87.2 dB
- Voice Coil Diameter
- 1.25"
- DC Resistance (Re)
- 5.9 ohms
- Voice Coil Inductance (Le)
- 1.25"
- Resonant Frequency (Fs)
- 66 Hz
- Mechanical Q (Qms)
- 3.63
- Electromagnetic Q (Qes)
- 0.31
- Total Q (Qts)
- 0.29
- Diaphragm Mass Inc. Airload (Mms)
- 4.7g
- Mechanical Compliance of Suspension (Cms)
- 1.24 mm/N
- Surface Area of Cone (Sd)
- 58 cm2
- BL Product (BL)
- 6.1 Tm
- Compliance Equivalent Volume (Vas)
- 0.20 ft.³
- Maximum Linear Excursion (Xmax)
- 3.4 mm
