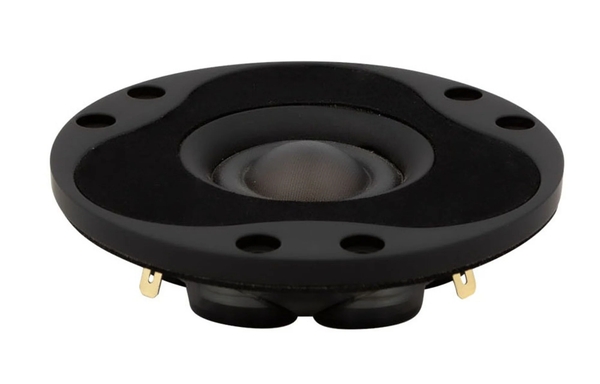

SCAN-SPEAK ILLUMINATOR D3004/662000 DOME TWEETER
AUD2356_0,0(0),2,2
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Veliki roll surround i tekstilna kupolasta dijafragma pružaju ravan frekvencijski odziv iznad 30 kHz s izvanrednom disperzijom izvan osi. Jedinstveni AirCirc magnetski sustav i njegova stražnja komora rezultiraju uklanjanjem refleksija i rezonancija koje ugrožavaju performanse tradicionalnih motora.
Dodatne specifikacije za SCAN-SPEAK ILLUMINATOR D3004/662000 DOME TWEETER
Specifications
- Article number
- D3004/662000
- EAN
- 0696277268313
- Tweeter Type
- Dome
- Tweeter Series
- Illuminator Series
- Cone / Dome Diameter
- 25 mm | 1"
- Power Handling (RMS)
- 90 Watts
- Power Handling (max)
- 150 Watts
- Impedance (Z)
- 4 Ω
- Sensitivity (SPL at 1m / 2.83V)
- 91.5 dB
- Resonant Frequency (Fs)
- 500 Hz
- DC Resistance (Re)
- 3 ohms
- Voice Coil Inductance (Le)
- 0.03 mH
- Mechanical Q (Qms)
- 3.79
- Electromagnetic Q (Qes)
- 0.62
- Total Q (Qts)
- 0.54
- Article number
- D3004/662000
- EAN
- 0696277268313
- Tweeter Type
- Dome
- Tweeter Series
- Illuminator Series
- Cone / Dome Diameter
- 25 mm | 1"
- Power Handling (RMS)
- 90 Watts
- Power Handling (max)
- 150 Watts
- Impedance (Z)
- 4 Ω
- Sensitivity (SPL at 1m / 2.83V)
- 91.5 dB
- Resonant Frequency (Fs)
- 500 Hz
- DC Resistance (Re)
- 3 ohms
- Voice Coil Inductance (Le)
- 0.03 mH
- Mechanical Q (Qms)
- 3.79
- Electromagnetic Q (Qes)
- 0.62
- Total Q (Qts)
- 0.54
Specifikacija za SCAN-SPEAK ILLUMINATOR D3004/662000 DOME TWEETER
