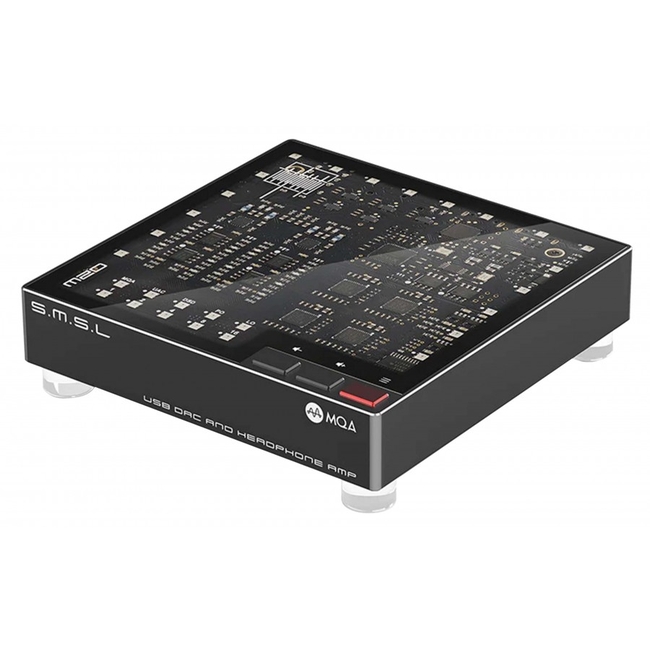

SMSL M20 DAC POJAČALO ZA SLUŠALICE CRNO
AUD2292_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Pojačalo za slušalice SMSL M20 DAC odlikuje se audiofilskim komponentama i jedinstvenim oblikom. Sadrži čak 4 CS43131 čipa i XMOS XU316 USB sučelje, što mu omogućuje podršku za brzine uzorkovanja do PCM 32bit 768kHz, DSD256 i MQA.
Dodatne specifikacije za SMSL M20 DAC POJAČALO ZA SLUŠALICE CRNO
| Specifications | |
|---|---|
| Product type | DAC / Headphone amplifier |
| DAC chip | 4x CS43131 |
| Headphone amplifier chips | 2x TPA6120A2 |
| Inputs | 1x USB-C input |
| Outputs | 1x 3.5mm jack output 1x 3.5mm jack single-ended headphone output 1x 4.4mm jack balanced headphone output |
| Supported sample rates | PCM up to 32bit 768kHz DSD up to DSD256 |
| Headphone output power | 700mW @ 16Ω 700mW @ 32Ω 350mW @ 64Ω 160mW @ 150Ω 80mW @ 300Ω 40mW @ 600Ω |
| Output level | 3.5mm jack line output: 2.5Vrms 3.5mm jack headphone output: 2.5Vrms 4.4mm jack headphone output: 5Vrms |
| Output impedance | Line: 22 ohm Headphones: Near 0 ohm |
| Dynamic range | Jack 3.5mm: 119dB Jack 4.4mm: 124dB |
| SNR | Jack 3.5mm: 119dB Jack 4.4mm: 124dB |
| THD+N | 0.0001% (-115 dB) |
| USB compatibility | Windows 7/8/8.1/10/11, Android, iOS, macOS 10.6+, Linux PS5, Nintendo Switch |
| PCM filters | x5 |
| General | |
|---|---|
| Power supply | 5V 1A via USB-C |
| Energy consumption | < 15 W Standby: < 0.5 W |
| Dimensions | 85 x 22.5 x 85 mm |
| Weight | 165g |
| Color | Black |
| Package | 1x SMSL M20 1x USB-A to USB-C cable 1x USB-C to USB-C cable |
