  3. FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM
Gotovina - jednokratno kartice

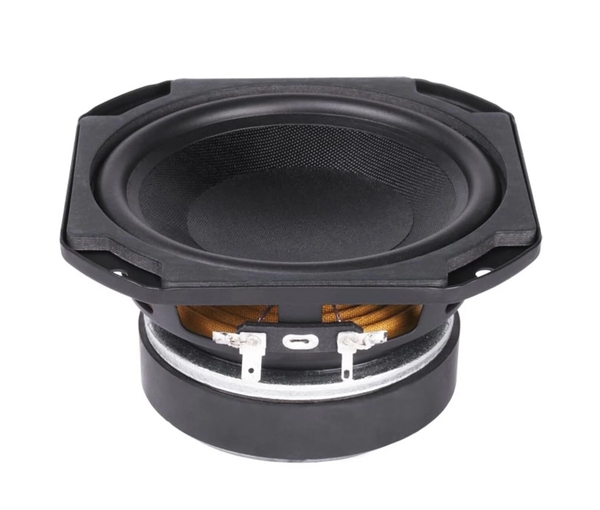

FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM

AUD2277_0,0(0),0,0
https://neutrinomobile.hr/web/image/product.template/17918/image_1920?unique=60d0d10
Potrebna provjera kod dobavljača
  • Tag jamstvo

44,00 € 44,00 € 44.0 EUR Jednokratno

Gotovina, pouzeće, virman, Visa, Master, Maestro jednokratno

 46,32 € 46,32 € Na rate

Jednokratno Diners, sve kartice na rate

44,00 €

Uključuje 25% PDV-a

This combination does not exist.

Dodaj u košaricu
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

High-efficiency 5" bass-midwoofer with 8-ohm impedance, designed for extended midbass response and high output in compact speaker enclosures and two-way systems.

Dodatne specifikacije za FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM

Article number
5FE120-8F
EAN
0848864011042
Woofer Type
Bass-Midwoofer
Nominal Diameter
5''
Power Handling (RMS)
80 Watts
Power Handling (max)
160 Watts
Impedance (Z)
8 Ω
Sensitivity (SPL at 1m / 2.83V)
88 dB
Frequency Response
63 - 6.300 Hz
Voice Coil Diameter
32 mm
DC Resistance (Re)
5.4 Ω
Voice Coil Inductance (Le)
0.41 mH
Resonant Frequency (Fs)
65 Hz
Mechanical Q (Qms)
7.4
Electromagnetic Q (Qes)
0.51
Total Q (Qts)
0.48
Diaphragm Mass Inc. Airload (Mms)
11.0 g
Moving Mass Of Diaphragm (Mmd)
10.1 g
Mechanical Compliance of Suspension (Cms)
0.55 mm/N
Surface Area of Cone (Sd)
84 cm²
BL Product (BL)
6.9 N/A
Compliance Equivalent Volume (Vas)
5.4 dm³
Maximum Linear Excursion (Xmax)
5.25 mm
Driver's Mechanical Losses (Rms)
0.6 kg/s
Voice Coil Wire Material
Cu
Voice Coil Former
Kapton
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
144.8 mm
Overall Depth
71,5 mm
Baffle Cutout Diameter
114 mm
Bolt Circle Diameter
133 mm
# Mounting Holes
4
Mounting Hole Diameter
5.3 mm

Specifikacija za FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM
