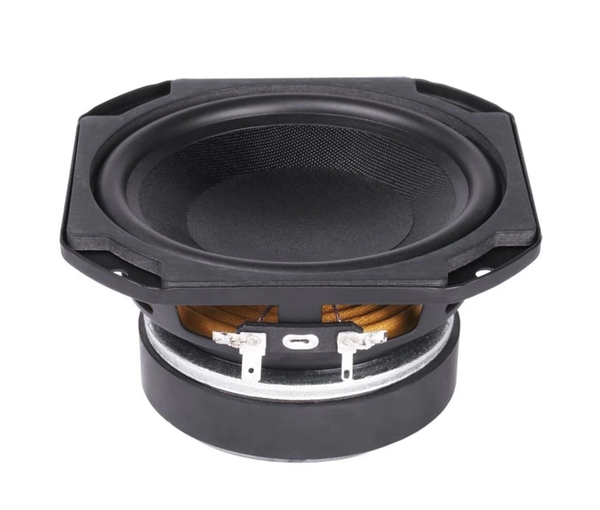

FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM
AUD2277_0,0(4),0,0
Potrebna provjera kod dobavljača
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci
High-efficiency 5" bass-midwoofer with 8-ohm impedance, designed for extended midbass response and high output in compact speaker enclosures and two-way systems.
Dodatne specifikacije za FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM
Article number 5FE120-8F EAN 0848864011042 Woofer Type Bass-Midwoofer Nominal Diameter 5'' Power Handling (RMS) 80 Watts Power Handling (max) 160 Watts Impedance (Z) 8 Ω Sensitivity (SPL at 1m / 2.83V) 88 dB Frequency Response 63 - 6.300 Hz Voice Coil Diameter 32 mm DC Resistance (Re) 5.4 Ω Voice Coil Inductance (Le) 0.41 mH Resonant Frequency (Fs) 65 Hz Mechanical Q (Qms) 7.4 Electromagnetic Q (Qes) 0.51 Total Q (Qts) 0.48 Diaphragm Mass Inc. Airload (Mms) 11.0 g Moving Mass Of Diaphragm (Mmd) 10.1 g Mechanical Compliance of Suspension (Cms) 0.55 mm/N Surface Area of Cone (Sd) 84 cm² BL Product (BL) 6.9 N/A Compliance Equivalent Volume (Vas) 5.4 dm³ Maximum Linear Excursion (Xmax) 5.25 mm Driver's Mechanical Losses (Rms) 0.6 kg/s Voice Coil Wire Material Cu Voice Coil Former Kapton Basket / Frame Material Steel Magnet Material Ferrite Overall Outside Diameter 144.8 mm Overall Depth 71,5 mm Baffle Cutout Diameter 114 mm Bolt Circle Diameter 133 mm # Mounting Holes 4 Mounting Hole Diameter 5.3 mm
Specifikacija za FAITALPRO 5FE120-8F 5" BASS-MIDWOOFER 8 OHM
