FOSI AUDIO V3 STEREO CLASS D AMPLIFIER TPA3255 2x225W 4 OHM
AUD2276_0,1(0),0,0
Dostupnost: u dolasku 02.07.2025
Besplatna dostava za narudžbe iznad 130,00 €.
Cijena dostave 4,00 €
Cijena dostave 4,00 €
Jamstvo 24 mjeseci

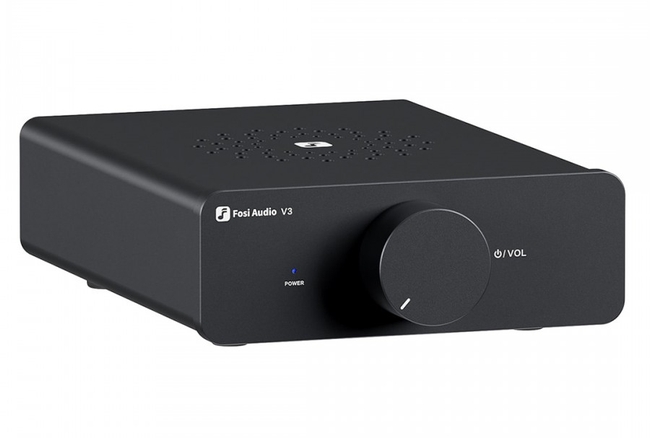

Power adapter 48V 5A included. The V3 from Fosi Audio is a compact and powerful amplifier at a very affordable price. Despite its simplicity, the V3 amplifier uses high-quality audiophile components such as a TI TPA3255 amplifier chip and delivers up to 2x225W @ 4Ω.
Dodatne specifikacije za FOSI AUDIO V3 STEREO CLASS D AMPLIFIER TPA3255 2x225W 4 OHM
| Specifications | |
|---|---|
| Product type | Stereo class D Amplifier |
| Inputs | 1x Stereo RCA |

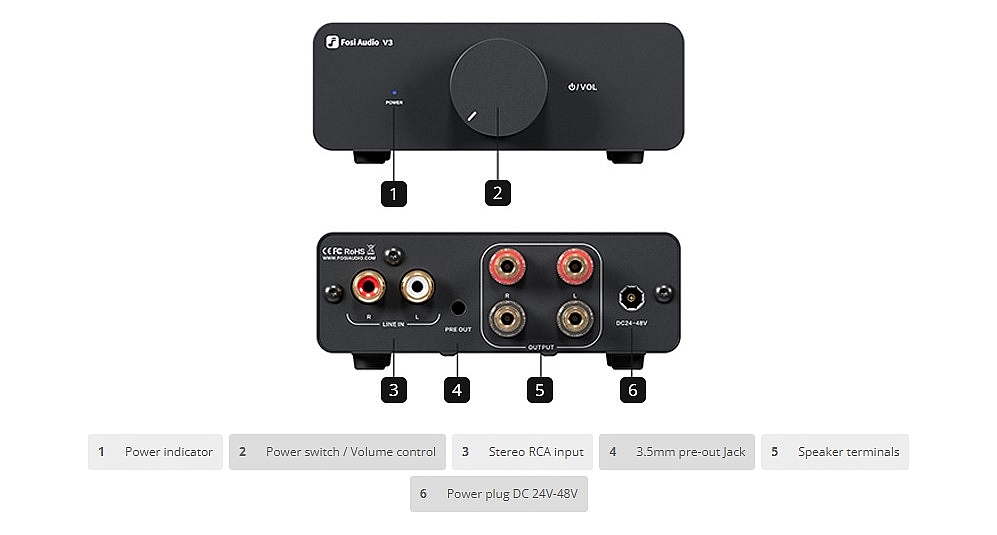

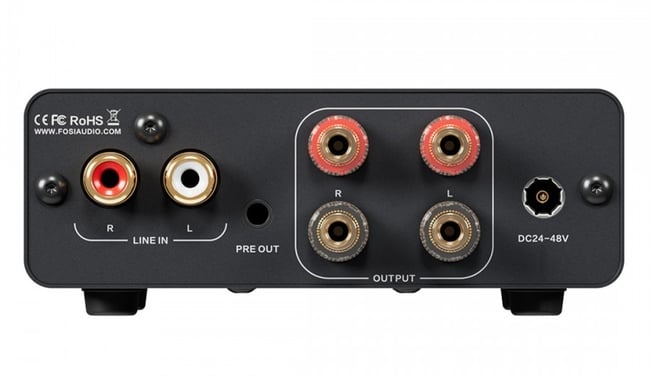

| Outputs | 1x Speaker terminals 1x 3.5mm pre-out jack |
| Amp. chip | TI TPA3255 |
| OPA | 2x NE5532 |
| Output power | 2x 225W @ 4Ω (THD+N 1%) 2x 160W @ 8Ω (THD+N 1%) 2x 270W @ 4Ω (THD+N 10%) 2x 190W @ 8Ω (THD+N 10%) |
| Speaker impedance | 2Ω - 8Ω |
| Frequency response | 20Hz - 20kHz (±0.1dB) |
| SINAD | ≥ 88dB |
| THD | < 0.003% |
| SNR | ≥ 110dB |
| Volume control | Logarithm A pot |
| General | |
|---|---|
| Power supply | 24 - 48V DC |
| Dimensions | 166 x 105 x 35 mm |
| Color | Black |
| Package | 1x Fosi Audio V3 1x Power adapter 48V 5A |
