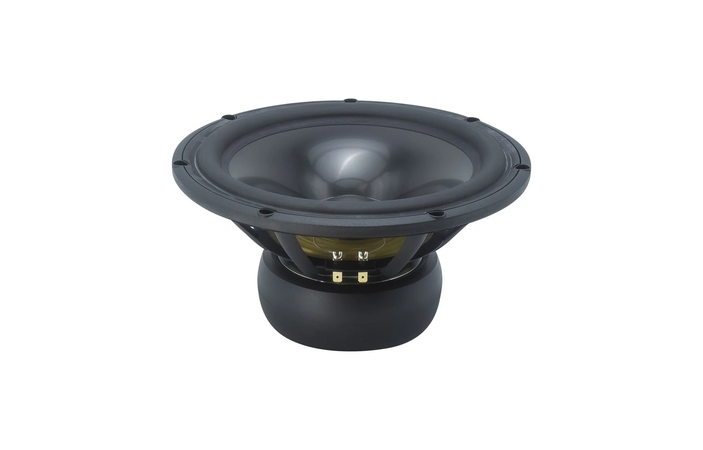

SCAN-SPEAK REVELATOR 26W/8861T00 BASS-MID WOOFER (IZLOŽBENI PRIMJERAK)
AUD2252_0,0(0),0,0
Potrebna provjera kod dobavljača
Besplatna dostava
Jamstvo 24 mjeseci
Revelator wooferi i subwooferi imaju vrlo krute konuse od papira ili aluminija koji rade u širokom frekvencijskom rasponu, u kombinaciji sa Scan-Speaks linearnim ovjesom s malim gubicima i patentiranim Symmetrical Drive (SD-1) rezultira vrlo niskim izobličenjem i glatkim i dobrim frekvencijskim odzivom, kao i savršenom prijelaznom reprodukcijom.
Dodatne specifikacije za SCAN-SPEAK REVELATOR 26W/8861T00 BASS-MID WOOFER (IZLOŽBENI PRIMJERAK)
Specifications
- Article number
- 26W/8861T00
- EAN
- 8785256845767
- Woofer Series
- Scan-Speak Revelator series
- Woofer Type
- Bass-mid woofer
- Nominal Diameter
- 26 cm
- Power Handling (RMS)
- 80 Watts
- Power Handling (max)
- 200 Watts
- Impedance (Z)
- 8 Ω
- Sensitivity (SPL at 1m / 2.83V)
- 88.5 dB
- Voice Coil Diameter
- 50 mm
- DC Resistance (Re)
- 6.2 Ω
- Resonant Frequency (Fs)
- 19 Hz
- Mechanical Q (Qms)
- 5.20
- Electromagnetic Q (Qes)
- 0.33
- Total Q (Qts)
- 0.31
- Diaphragm Mass Inc. Airload (Mms)
- 43.5 g
- Surface Area of Cone (Sd)
- 320 cm²
- BL Product (BL)
- 9.9 Tm
- Compliance Equivalent Volume (Vas)
- 231 ltr.
- Maximum Linear Excursion (Xmax)
- 4.5 mm
- Article number
- 26W/8861T00
- EAN
- 8785256845767
- Woofer Series
- Scan-Speak Revelator series
- Woofer Type
- Bass-mid woofer
- Nominal Diameter
- 26 cm
- Power Handling (RMS)
- 80 Watts
- Power Handling (max)
- 200 Watts
- Impedance (Z)
- 8 Ω
- Sensitivity (SPL at 1m / 2.83V)
- 88.5 dB
- Voice Coil Diameter
- 50 mm
- DC Resistance (Re)
- 6.2 Ω
- Resonant Frequency (Fs)
- 19 Hz
- Mechanical Q (Qms)
- 5.20
- Electromagnetic Q (Qes)
- 0.33
- Total Q (Qts)
- 0.31
- Diaphragm Mass Inc. Airload (Mms)
- 43.5 g
- Surface Area of Cone (Sd)
- 320 cm²
- BL Product (BL)
- 9.9 Tm
- Compliance Equivalent Volume (Vas)
- 231 ltr.
- Maximum Linear Excursion (Xmax)
- 4.5 mm
Specifikacija za SCAN-SPEAK REVELATOR 26W/8861T00 BASS-MID WOOFER (IZLOŽBENI PRIMJERAK)
