Dodatne specifikacije za MINIDSP FLEX HTX DSP AUDIO PROCESOR
Product type: 2x8 channels Audio DSP Processor
Inputs. 8x RCA unbalanced
8x balanced 6.35mm jack
1x HDMI ARC/eARC (up to 8 LPCM channels)
1x USB-B (up to 8 channels)
1x Coaxial (Stereo)
1x Optical Toslink (Stereo)

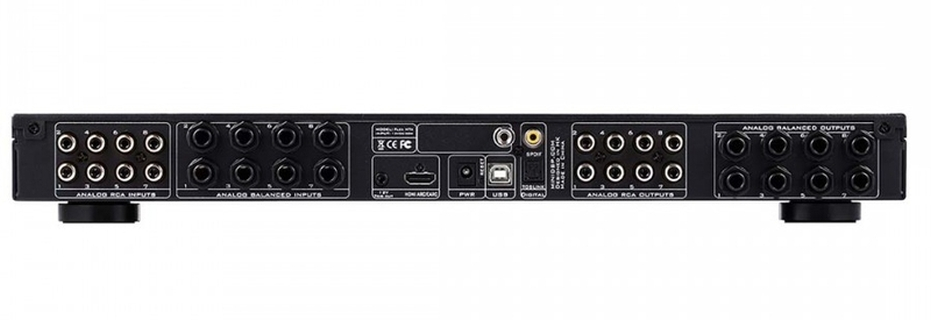

Outputs: 8x RCA unbalanced, 8x 6.35mm balanced jack
Other connectors: Trigger 12V on jack 3.5mm
Processor: Analog Devices SHARC ADSP21489 400MHz 32bit floating point
InterfaceUSB: XMOS
USB compatibility: Windows (ASIO driver), Mac OS, Linux
(Multichannel configuration up to 7.1 channels)
HDMI connectivity: ARC/eARC (up to 8 LPCM channels), Supported sampling rates : 32 - 96 kHz
Filter technology: MiniDSP DSP toolbox (routing, bass management, parametric EQ, crossover, gain/delay), Optional software upgrade to Dirac Live® 3.x Full Range (20 Hz - 20 kHz) multichannel correction
DSP preset: Up to 4 presets
CEC control: HDMI CEC control for Mute/Volume/View
Dimensions: 41.5 x 429 x 236mm
Package: 1x MiniDSP Flex HTX audio processor, 1x Remote control, 1x External switching power supply 12V 1.6A
