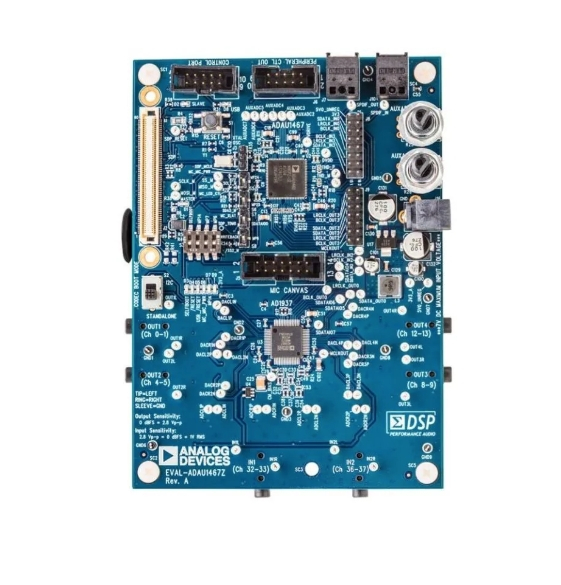

ANALOG DEVICES EVAL-ADAU1467Z
Potpuno programabilni audio DSP za poboljšanu obradu zvuka. Sadrži SigmaStudio, vlasnički alat za grafičko programiranje za razvoj prilagođenih protoka signala.
Dodatne specifikacije za ANALOG DEVICES EVAL-ADAU1467Z
Up to 294.912 MHz, 32-bit SigmaDSP core at 1.2 V
Up to 24 kWords of program memory
Up to 80 kWords of parameter/data RAM
Up to 6144 SIMD instructions per sample at 48 kHz
Up to 1600 ms digital audio delay pool at 48 kHz
4 serial input ports, 4 serial output ports
48-channel, 32-bit digital I/O up to a sample rate of 192 kHz
Flexible configuration for TDM, I2S, left and right justified formats, and PCM
8 stereo ASRCs from 1:8 up to 7.75:1 ratio and 139 dB dynamic range
Stereo S/PDIF input and output at 192 kHz
4 PDM microphone input channels
Multichannel, byte addressable TDM serial ports
Clock oscillator for generating master clock from crystal
Integer PLL and flexible clock generators
Integrated die temperature sensor
I2C and SPI control interfaces (both slave and master)
Self boot from serial EEPROM
8-channel, 10-bit SAR auxiliary control ADC
26 multipurpose pins for digital controls and outputs
On-chip regulator for generating 1.2 V from 3.3 V supply
88-lead, 12 mm × 12 mm LFCSP package with 5.3 mm exposed pad
Temperature range: −40°C to +105°C
