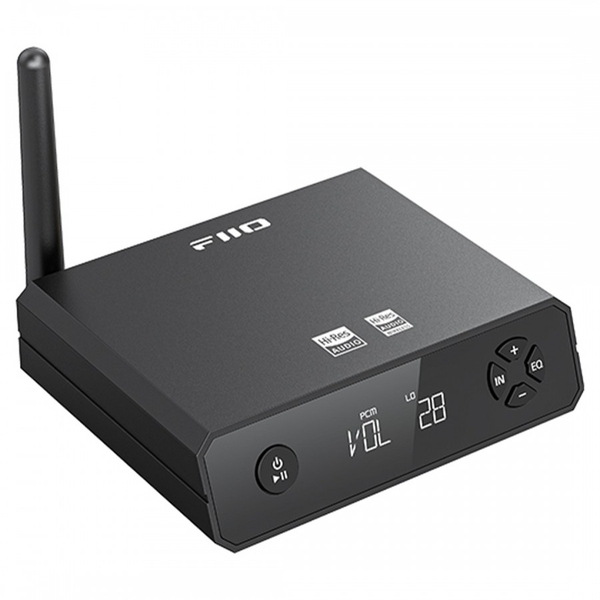

FIIO BR13 BLUETOOTH RECEIVER

DAC Chip: ES9018K2M
Amplification chip: TPA1882
Bluetooth Chip: QCC5125

Inputs: 1x USB-C input
1x Optical Toslink input
1x Coaxial SPDIF input/output
Bluetooth

Outputs: 1x Optical Toslink
1x SPDIF Coaxial input/output
1x RCA stereo

Supported Bluetooth codecs: AAC / SBC / aptX / aptX LL / aptX Adaptive / aptX HD / LDAC
Multi-sources Bluetooth: YES

Supported sample rates: Local: 32Bits 96kHz
Coaxial input: 32Bits 192kHz
Toslink input: 24Bits 96kHz
Coaxial output: 24Bits 96kHz (upsampling x2)
Toslink output: 24Bits 96kHz (upsampling x2)

Screen: LCD

LDAC BLUETOOTH RECEPTION AND RCA LINE OUTPUT MEASUREMENTS
THD+N: ＜ 0.002% (1kHz / -0dB @ 10KΩ)
Crosstalk: ≥ 98dB (1kHz / -0dB @ 10KΩ)
Frequency response: 20Hz-20KHz
SNR: ≥ 113dB (A-weighted)
Noise floor: ＜5uV (A-weighted) RCA line output level: 2Vrms

RCA LINE OUTPUT MEASUREMENTS (USB DAC INPUT/OPTICAL DECODING)
THD+N: ＜ 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk: ≥ 108dB
Frequency response: 20Hz-20KHz
SNR: ≥ 114dB (A-weighted)
Noise floor: ＜5uV (A-weighted)
RCA line output level: 2Vrms

RCA LINE OUTPUT MEASUREMENTS (SPDIF INPUT)
THD+N: ＜ 0.0006% (1kHz / -0dB @ 10KΩ)
Crosstalk: ≥ 109dB
Frequency response: 20-20KHz : damping < 1.9dB, 20Hz-50KHz : damping ＜ 1.2dB
SNR: ≥ 114dB (A-weighted)
Noise floor: ＜5uV (A-weighted)
RCA line output level: 2vrms

Power supply voltage: USB 5V 1A
Dimensions: 98 x 96 x 26.5mm
Net weight: 135g
Package: 1x FiiO BR13 Bluetooth receiver, 1x USB-A to USB-C cable (Data)
