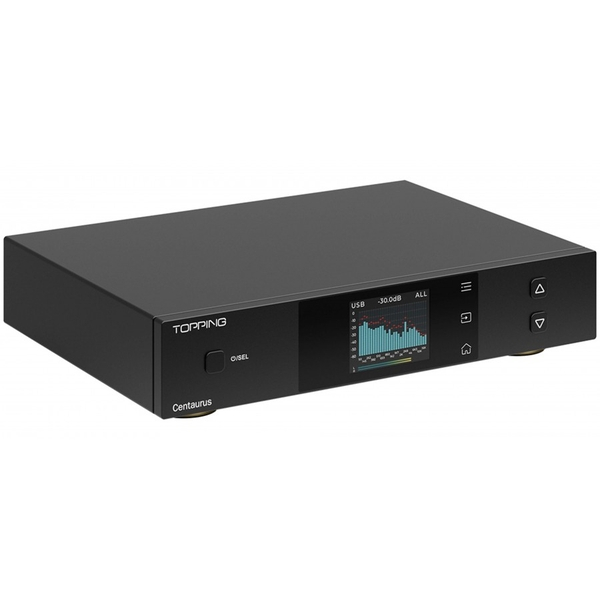

TOPPING CENTAURUS BALANCED R2R DAC

Resistance networks: x8
Architecture: Balanced
USB interface: XMOS XU316
Bluetooth chip: QCC5125

Inputs: 1x USB-C
1x I2S via HDMI
1x Optical Toslink
1x Coaxial
1x AES/EBU
Bluetooth

Outputs: 1x Single-ended RCA, 1x Balanced XLR
Other connectors: 1x Trigger in, 1x Trigger out
Supported sample rates: USB, I2S HDMI: PCM 32bit 768kHz, DSD512, Toslink optical, SPDIF coaxial, AES/EBU: PCM 24bit 192kHz
Supported bluetooth codecs: AAC, SBC, aptX, aptX Adaptative, aptX HD, LDAC (24bit 96kHz)
Operating modes: OS/NOS/BEST
Output modes: Fixed or variable
PEQ: 10 bands

USB compatibility: Windows 10/11
Mac OSX
Linux
IOS/Android

RCA output parameters (USB in 96kHz)
THD+N (A-WT): < 0.00005% @ 1kHz
THD+N (NO-WT 90kBw) : < 0.00005% @ 20Hz-20kHz
SNR (A-WT): 126dB @ 1kHz
Dynamic range (A-WT): 126dB @ 1kHz
Frequency response: 20Hz-20kHz (±0.6dB), 20Hz-40kHz (±2.2dB)
Output level: 2.1Vrms @ 0dBFS (mode 4V), 2.6Vrms @ 0dBFS (mode 5V)
Noise (A-WT): < 1.2uVrms
Crosstalk: -121dB @ 1kHz
Channel balance: 0.3dB
Output impedance: 50 ohm

XLR output parameters (USB in 96kHz)
THD+N (A-WT): < 0.00005% @ 1kHz
THD+N (NO-WT 90kBw): < 0.00005% @ 20Hz-20kHz
SNR (A-WT): 130dB @ 1kHz
Dynamic range (A-WT): 130dB @ 1kHz
Frequency response: 20Hz-20kHz (±0.6dB), 20Hz-40kHz (±2.2dB)
Output level: 4.2Vrms @ 0dBFS (mode 4V), 5.2Vrms @ 0dBFS (mode 5V)
Noise (A-WT): < 1.4uVrms
Crosstalk: -130dB @ 1kHz
Channel separation: 0.3dB
Outpout impedance: 100 ohm

Power supply: 110-240VAC 50/60Hz
Dimensions: 220 x 160 x 45mm

Package: 1x DAC R2R Topping Centaurus
1x Remote control
1x Bluetooth antenna
1x USB-A to USB-B cable
1x Power supply cable
