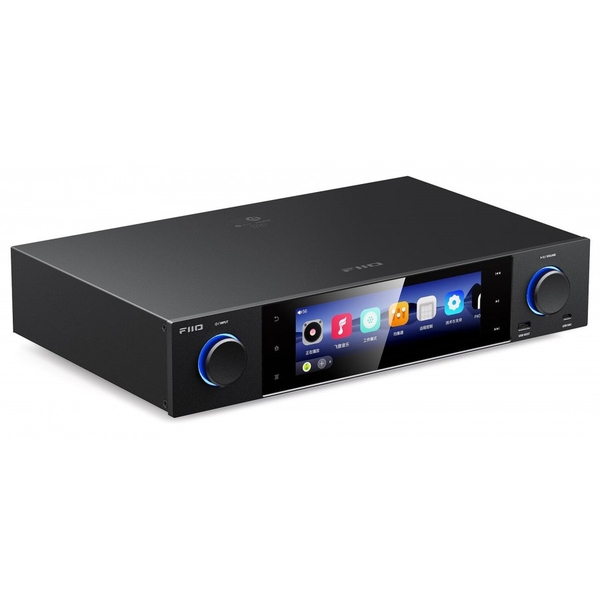

FIIO S15 STREAMER PRETPOJAČALO DAC

Product type: Audio streamer, DAC, Preamplifier
DAC chip: AK4191EQ + AK4499EX
USB interface: XMOS XU-316
Bluetooth chip: QCC5125
Processor: Qualcomm Snapdragon 660, 4GB RAM+64GB ROM
Operating system: Android 12

Inputs: 2x USB-C
2x USB-A Host
1x HDMI
1x AES/EBU
1x Optical Toslink
1x Coaxial
1x SSD slot + USB-C
1x SD card slot
WiFi
Bluetooth

Outputs: 2x Single-ended RCA
1x Balanced XLR
1x HDMI ARC
1x HDMI I2S
1x AES/EBU
1x Toslink optical
1x Coaxial
Bluetooth

Other connectors Trigger out

Supported sampling rates: Native decoding: PCM 32bit 384kHz, DSD256
USB DAC: PCM 32bit 768kHz, DSD512
Coaxial and AES/EBU: 24bit 192kHz
Optical Toslink: 24bit 96kHz
HDMI input: 24Bit 192kHz

Supported sampling rates on digital outputs: USB Audio: 32bit 768kHz, DSD512 (support DoP/D2P/Native)
Coaxial: 24bit 384kHz, DSD128 (DoP/D2P)
Optical Toslink: 24bit 192kHz
AES/EBU: 24bit 384kHz, DSD128 (DoP/D2P)
HDMI: 24bit 192kHz

Preamplified output level: Preamp RCA: 4.5+4.5Vrms (1kHz @ 10K ohm), Preamp XLR: 8.9+48.9Vrms (1kHz @ 10K ohm)
Line output level: RCA: 2.4+42.4Vrms (1kHz @ 10K ohm), XLR: 4.8+4.8Vrms (1kHz @ 10K ohm)
Frequency response: 20Hz-70kHz (attenuation < 2.8dB)
SNR: ≥ 131dB (A-Wt)
Noise floor: LO < 1.8uV (A-Wt)
THD+N: < 0.00023% (1kHz/0dB @ 10k ohm)

Streaming services and protocols compatibility: DLNA
AirPlay
Amazon Music
Deezer
Qobuz
Roon / Roon Bridge / Roon Ready
Spotify
Spotify Connect
Tidal
Tidal Connect
Web radios

Power supply: AC 100-240V 50/60Hz
Dimensions: 430 x 274.5 x 89.5mm
Weight: 5.65kg

Package: 1x FiiO S15 streamer
1x Bluetooth remote control
1x 3.5mm trigger jack cable
1x USB-C to USB-C cable
1x HDD cage M.2
1x HDD cage installation screwdriver
1x Power cable
