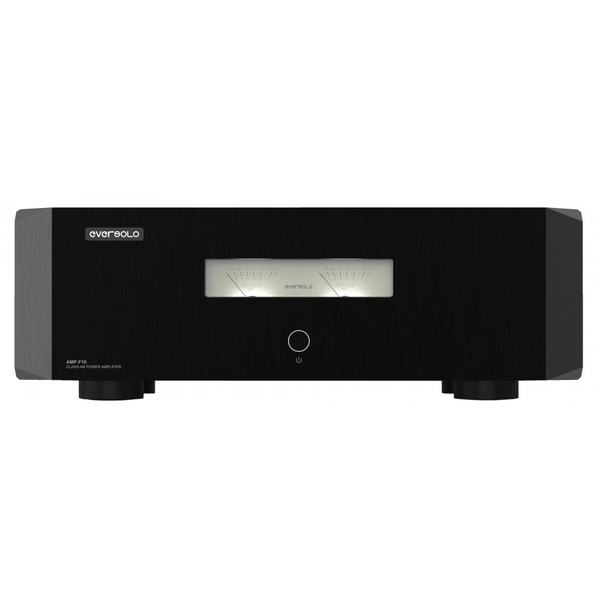

EVERSOLO AMP-F10 POJAČALO
Eversolo je dizajnirao AMP-F10 pojačalo klase AB koje prati njegov novi streamer, DMP-A10. Ovo pojačalo ima dvostruku mono uravnoteženu arhitekturu s ne manje od 5 MOSFET tranzistora po kanalu. Ovakva arhitektura daje mu značajnu rezervu snage, budući da je sposoban razviti do 2x320W ispod 4 ohma i 2x200W ispod 8 ohma. Tome je pridodana mogućnost premošćivanja u mono modu i postizanje izlazne snage od 950W na 4 ohma i 650W na 8 ohma.
Dodatne specifikacije za EVERSOLO AMP-F10 POJAČALO
Class: AB
Transistors: 5x MOSFET transistors (left channel), 5x MOSFET transistors (right channel)
Inputs: 1x Single-ended RCA stereo input, 1x Balanced XLR stereo input
Output: Speaker terminal output
Other connectors: Trigger in / out
Input sensitivity adjustment: 23dB/29dB
Output power: 2x 320W @ 4 ohm
2x 200W @ 8 ohm
2x 450W @ 2 ohm
1x 950W @ 4 ohm
1x 650W @ 8 ohm
THD+N: 0.008%
SNR: 200W @ 8Ω/1kHz, Gain 23dB : ≥ 113dB @A-wt, Gain 29dB : ≥ 110dB @A-wt
Frequency response: 10Hz-30kHz @ 8 ohm (±0.5dB)
Crosstalk: 200W @ 8ohm/1kHz ≤ -95dB
Input impedance: RCA : 10KΩ, XLR : 10KΩ
Input sensitivity (200W @ 8ohm/1kHz): RCA input gain 23dB: 2.65V, RCA input gain 29dB: 1.3V, XLR 23dB input gain: 5.2V, XLR 29dB input gain: 2.4V
Damping factor: >600 @ 8ohm/1kHz
Net weight: 18Kg
Dimensions: 430 x 310 x 147mm
Package: 1x Power amplifier AMP-F10, 1x Trigger cable, 1x Mains cable
