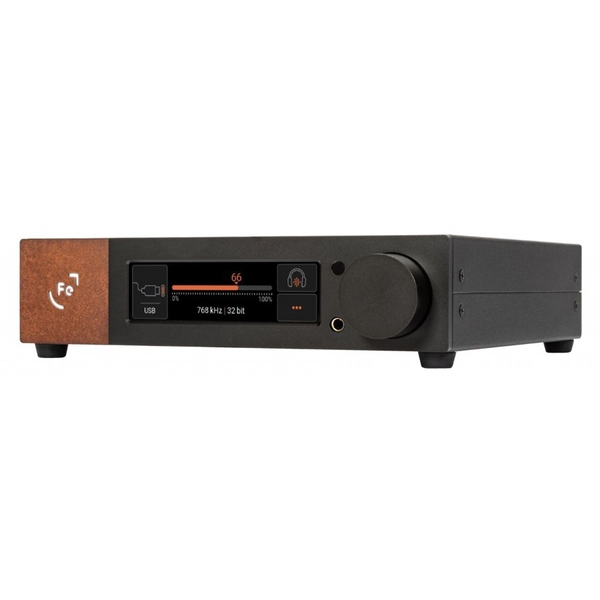

FERRUM WANDLA HP DAC POJAČALO ZA SLUŠALICE

DAC chip: ES9038PRO
Architecture: Balanced
Inputs: 1x Stereo single-ended RCA, 1x USB-C, 1x Coaxial, 1x Optical Toslink, 1x AES/EBU input, 1x HDMI ARC, 1x I2S HDMI

Outputs: 1x Balanced XLR output, 1x Single-ended RCA stereo output, 1x Balaced 4.4mm jack headphone output

Supported sample rates: USB-C: PCM 32bit 768kHz, DSD DoP256, DSD512
HDMI ARC: PCM 24bit 192kHz
I2S HDMI: PCM 32bit 768kHz, DSD DoP256, DSD512 (+ PS Audio®)
Coaxial: 24bit 192kHz, DSD DoP64
Optical Toslink: 24bit 96kHz
AES/EBU: 24bit 192kHz, DSD DoP64

MQA: Decoder and renderer (on all digital inputs)
Vmax RCA input: 9.5V RMS (2 – 3.5V RMS recommanded)
RCA input impedance: 47kΩ
Volume control: Analog with bypass option / digital for DAC operation only
Line output level: @ 0dBFS, 1kHz sine 10V RMS balanced, 5V RMS unbalanced
Line output level (RED): @ 0dBFS, 1kHz sine 4V RMS balanced, 2V RMS unbalanced
Frequency response: Analog input: 10Hz–200kHz +/- 0.1dB
THD (DAC): 121dB (0.00009%) THD+N: -115dB (unweighted)
THD (analog input): -123dB @ 2V RMS output
Dynamic range: Analog input: 127dB (A-weighted), Digital inputs: 127dB (A-weighted)
DAC output Crosstalk: -120dB pour 1kHz, > -100dB for 20Hz-20kHz
Line output impedance: Balanced: 44Ω, Single-ended: 22Ω

THD balanced output: 0.00016% / -116dB, 10mW into 50Ω, 0.00020% / -114dB, 100mW into 50Ω
THD unbalanced output: 0.00022% / -113dB, 10mW into 50Ω, 0.00022% / -113dB, 100mW into 50Ω
Output power: Balanced: 3500mW @ 50Ω, Single-ended: 1000mW @ 50Ω
Output impedance: Balanced : 1Ω, Single-ende: 0.5Ω

Dimensions: 21.7 x 20.6 x 5cm (WxDxH)
Weight: 1.90 kg / 4.19 lbs
Package: 1x Ferrum Wandla HP, 1x 6.35mm jack to 4.4mm jack adapter, 1x Remote control, 1x 24V DC power adapter
